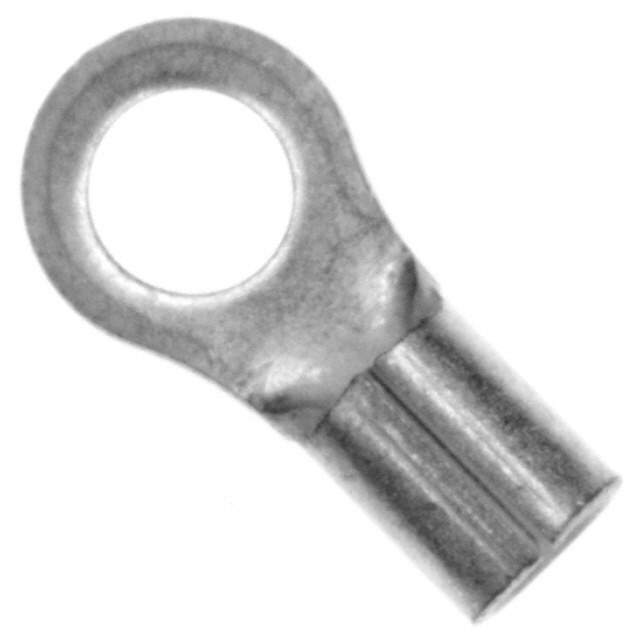

31090 Real Image1 31090 Real Image2
Same model may have multiple batches, images only for reference.
31090 Real Image1 31090 Real Image2
31090 Real Image1 31090 Real Image2
Same model may have multiple batches, images only for reference.

31090

Part No 31090
Manufacturer TE Connectivity
Catalog Terminals
Description CONN RING CIRC 16-22AWG #5 CRIMP / Ring Terminal Connector 5 Stud Circular 16-22 AWG Crimp
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Ring Connectors
Mfr TE Connectivity
Series Budget
Package Bulk
Terminal Type Circular
Stud/Tab Size 5 Stud
Thickness 0.031" (0.79mm)
Width - Outer Edges 0.218" (5.54mm)
Length - Overall 0.449" (11.40mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Wire Gauge 16-22 AWG
Insulation Non-Insulated
Features Serrated Termination
Color -
Contact Material Copper
Contact Finish Tin
Insulation Diameter -
Material - Insulation -
Base Product Number 3109
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Standard Package 1,000 pcs
Win Source Part Number 1380750-31090
Ultra Librarian 3D Model Ultra Librarian 31090 CAD Model

Description

The 1197887 is a ring connector terminal designed for crimp termination.

  • Termination Type: Crimp
  • Wire Gauge: 16 ~ 22 AWG
  • Contact Material: Copper
  • Contact Finish: Tin
  • Insulation: Non-Insulated
  • Features: Serrated Termination
  • Standard Package: 1,000 Pieces
  • Terminal Type: Circular
  • Stud/Tab Size: 5 Stud
  • Thickness: 0.031" (0.79mm)
  • Width: 0.218" (5.54mm)
  • Length - Overall: 0.449" (11.40mm)
  • Mounting Type: Free Hanging (In-Line)
  • REACH Status: Vendor Undefined
  • HTSUS Code: 8536.90.4000
  • Manufacturer: TE Connectivity
