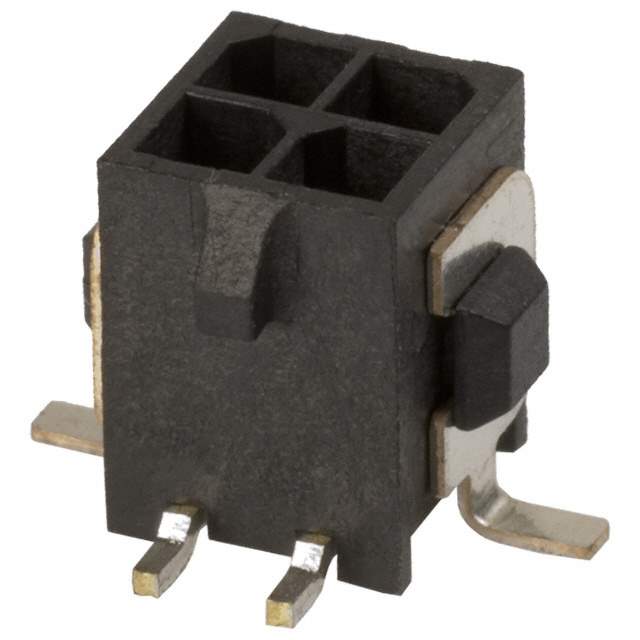

3-794636-4 Real Image
Same model may have multiple batches, images only for reference.

3-794636-4

Part No 3-794636-4
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER SMD 4POS 3MM / Connector Header Surface Mount 4 position 0.118" (3.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.118" (3.00mm)
Number of Positions 4
Number of Rows 2
Row Spacing - Mating 0.118" (3.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Surface Mount
Termination Solder
Fastening Type Locking Ramp
Insulation Height 0.364" (9.25mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 100.0µin (2.54µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Features Solder Retention
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 250V
Contact Finish Thickness - Post 100.0µin (2.54µm)
Applications General Purpose
Base Product Number 794636
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 2266-3-794636-4,A33236DKR,37946364,A33236TR,A33236CT
Standard Package 175
Win Source Part Number 1334239-3-794636-4
Ultra Librarian 3D Model Ultra Librarian 3-794636-4 CAD Model

Description

The TE Connectivity AMP Connectors header is a male pin connector that comes with four positions.

  • Position Number: 4
  • Pitch: 0.118" (3.00mm)
  • Style: board to cable/wire
  • Mounting Type: surface mount
  • Packaging: reel - TR
  • Shrouded: 4 wall
  • Insulation Material: polyamide (PA), nylon
  • Contact Material: brass
  • Contact Finish: tin
  • Voltage Rating: 250V
  • AEC-Q200: Yes
  • Temperature Range: -40°C ~ 105°C
  • Application: general purpose
