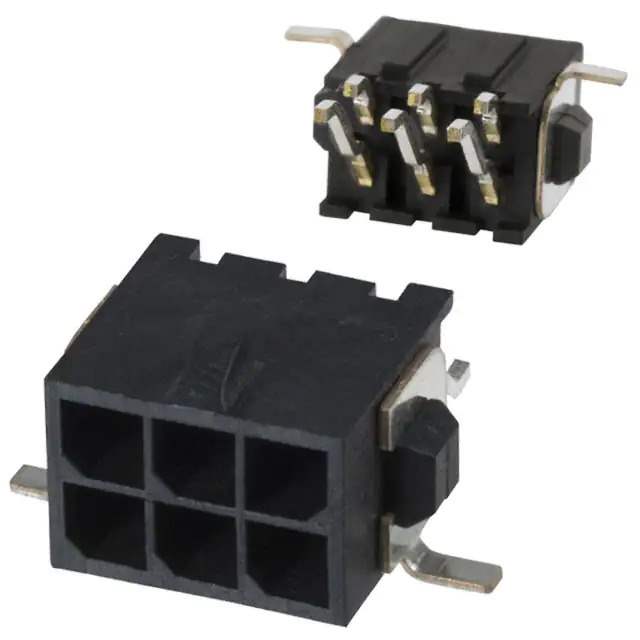

3-794627-6 Real Image
Same model may have multiple batches, images only for reference.

3-794627-6

Part No 3-794627-6
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 6POS 3MM / Connector Header Surface Mount, Right Angle 6 position 0.118" (3.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity
Series Micro MATE-N-LOK
Package Tape & Reel
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.118" (3.00mm)
Number of Positions 6
Number of Rows 2
Row Spacing - Mating 0.118" (3.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount, Right Angle
Termination Solder
Fastening Type Locking Ramp
Insulation Height 0.290" (7.37mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 100.0µin (2.54µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Features Solder Retention
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 250V
Contact Finish Thickness - Post 100.0µin (2.54µm)
Applications General Purpose
Base Product Number 794627
Standard Package 150 pcs
MSL Level 2 (1 Year)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 848780-3-794627-6
Ultra Librarian 3D Model Ultra Librarian 3-794627-6 CAD Model

Description

The Micro MATE-N-LOK series from TE Connectivity offers high-quality rectangular connectors for various applications and this particular connector is part number 848780-3-794627-6.

  • Positions: 6
  • Rows: 2
  • Fastening Type: Locking Ramp
  • Termination: Solder
  • Contact Material: Brass
  • Contact Plating: Tin
  • Voltage Rating: 250V
  • Application: General Purpose
  • Insulation Material: Polyamide (PA) and Nylon
  • Color: Black
  • Mating Pitch: 0.118" (3.00mm)
  • Contact Finish Thickness (Mating/Post): 100.0μin (2.54μm)
  • Mounting Type: Surface Mount, Right Angle
  • Temperature Range: -40°C to 105°C
