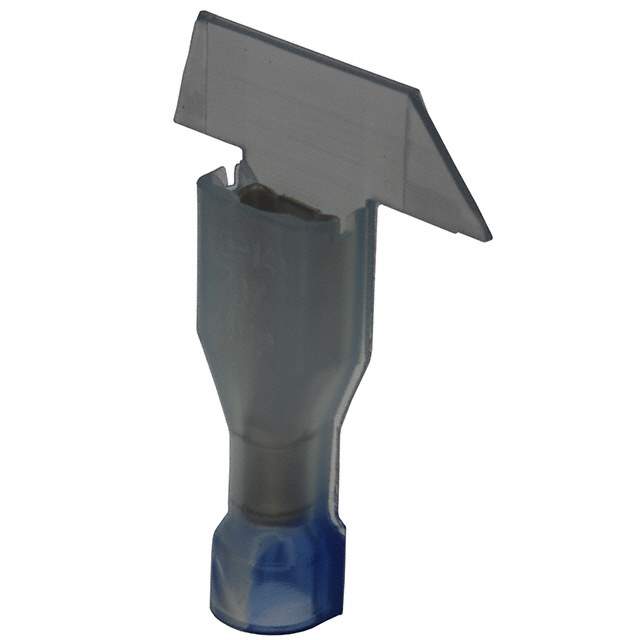

3-520402-2 Real Image
Same model may have multiple batches, images only for reference.

3-520402-2

Part No 3-520402-2
Manufacturer TE Connectivity
Catalog Terminals
Description CONN QC RCPT 14-16AWG 0.187 / 0.187" (4.75mm) Quick Connect Female 14-16 AWG Crimp Connector Fully Insulated
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Quick Connects, Quick Disconnect Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Terminal Type Standard
Gender Female
Tab Width 0.187" (4.75mm)
Tab Thickness 0.020" (0.51mm)
Length - Overall 0.855" (21.72mm)
Termination Crimp
Wire Gauge 14-16 AWG
Insulation Fully Insulated
Mounting Free Hanging (In-Line)
Color Blue
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.090" ~ 0.160" (2.29mm ~ 4.06mm)
Base Product Number 520402
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number A27850CT,2266-3-520402-2TR,3-520402-2-ND,A27850TR,35204022
Standard Package 2,200
Win Source Part Number 1333666-3-520402-2
Ultra Librarian 3D Model Ultra Librarian 3-520402-2 CAD Model

Description

The TE Connectivity AMP Connectors 1333666-3-520402-2 is a fully insulated female quick disconnect connector.

  • Termination Style: Crimp
  • Contact Finish: Tin
  • Wire Gauge: 14-16 AWG
  • Contact Material: Brass
  • Color: Blue
  • Overall Length: 0.855 inches (21.72mm)
  • Tab Width: 0.187 inches (4.75mm)
  • Insulation Diameter: 0.090 inches to 0.160 inches (2.29mm to 4.06mm)
  • Mounting: Free Hanging (In-Line)
  • Terminal Type: Standard
  • Packaging: Reel - TR
  • Standard Package: 2,200
  • RoHS3 Compliant: Yes
  • ECCN: EAR99
