Same model may have multiple batches, images only for reference.

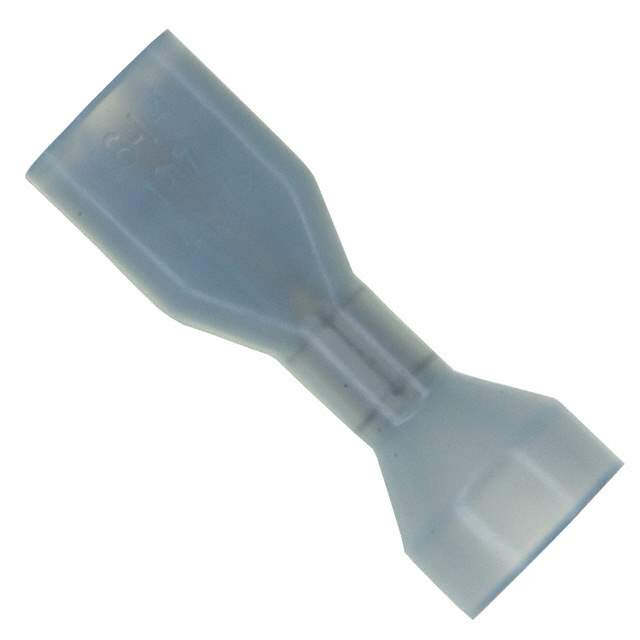

3-520276-2 Real Image
Same model may have multiple batches, images only for reference.

3-520276-2

Part No 3-520276-2
Manufacturer TE Connectivity
Catalog Terminals
Description CONN QC RCPT 14-16AWG 0.187 / 0.187" (4.75mm) Quick Connect Female 14-16 AWG Crimp Connector Fully Insulated
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Quick Connects, Quick Disconnect Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Terminal Type Standard
Gender Female
Tab Width 0.187" (4.75mm)
Tab Thickness 0.032" (0.81mm)
Length - Overall 0.935" (23.75mm)
Termination Crimp
Wire Gauge 14-16 AWG
Insulation Fully Insulated
Mounting Free Hanging (In-Line)
Color Blue
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.260" (6.60mm)
Base Product Number 520276
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number A99878TR,35202762,3-520276-2-ND,A99878CT,2266-3-520276-2TR
Standard Package 2,000
Win Source Part Number 1333595-3-520276-2
Ultra Librarian 3D Model Ultra Librarian 3-520276-2 CAD Model

Description

The TE Connectivity AMP Connectors 1333595-3-520276-2 is a high-quality electronic component that is perfect for use in various electronic devices.

  • Type: Fully Insulated Quick Connect
  • Wire Gauge: 14-16 AWG
  • Win Source Part Number: 1333595-3-520276-2
  • Standard Package: 2,000
  • Mounting: Free Hanging (In-Line)
  • RoHS Compliant: Yes
