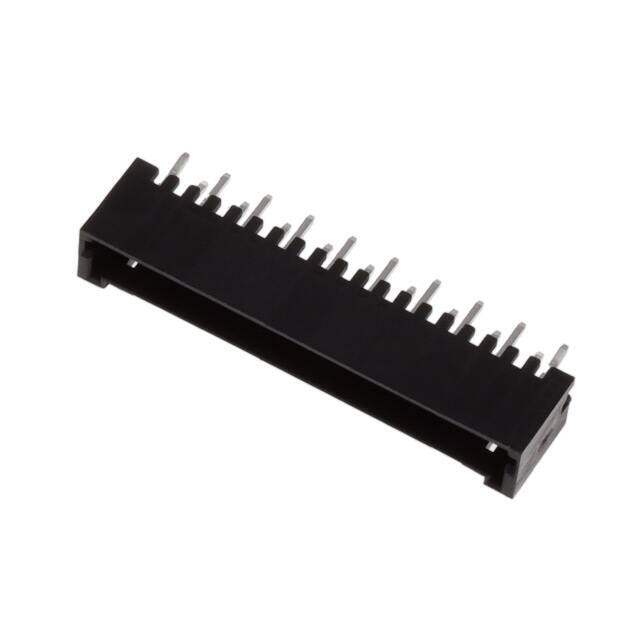

3-292207-9 Real Image
Same model may have multiple batches, images only for reference.

3-292207-9

Part No 3-292207-9
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 19POS 1.5MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity
Series Mini CT
Package Tray
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.059" (1.50mm)
Number of Positions 19
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Kinked Pin, Solder
Fastening Type Detent Lock
Contact Length - Mating 0.094" (2.40mm)
Contact Length - Post 0.118" (3.00mm)
Overall Contact Length 0.307" (7.80mm)
Insulation Height 0.272" (6.91mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 39.4µin (1.00µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA), Nylon, Glass Filled
Features Board Guide
Temperature Range - Operating -30°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 50VAC
Applications General Purpose
Base Product Number 292207
Standard Package 450 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 855658-3-292207-9
Ultra Librarian 3D Model Ultra Librarian 3-292207-9 CAD Model

Description

The TE Connectivity 794077 electronic component is a part of the Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins category.

  • Series: Mini CT
  • Positions: 19
  • Feature: Board Guide
  • Connector Type: Header
  • Contact Type: Male Pin
  • Positions Loaded: All
  • Row: Single
  • Termination: Kinked Pin Soldering
  • Fastening Type: Detent Lock
  • Package: Tray
  • Quantity: 450 pieces
  • Contact Material: Brass
  • Voltage Rating: 50VAC
  • Insulation Material: Polyamide (PA), nylon, glass filled
  • Flammability: UL94 V-0
  • Application: General-Purpose
  • Pitch: 0.059" (1.50mm)
  • Contact Finish (Mating): Tin, 39.4µin (1.00µm)
  • Contact Finish (Post): Tin
  • Insulation Color: Black
  • Mounting: Through Hole
  • Shrouded: 4 Wall
  • Contact Length (Post): 0.118" (3.00mm)
  • Contact Length (Overall): 0.307" (7.80mm)
  • Insulation Height: 0.272" (6.91mm)
  • Contact Shape: Square
  • Operating Temperature: -30°C to 105°C
  • Contact Length (Mating): 0.094" (2.40mm)
  • MSL Level: 1 (Unlimited)
  • Current Rating: Varies by wire gauge
  • HTSUS Code: 8536.69.4040
  • Manufacturer: TE Connectivity
  • Status: Active
