Same model may have multiple batches, images only for reference.

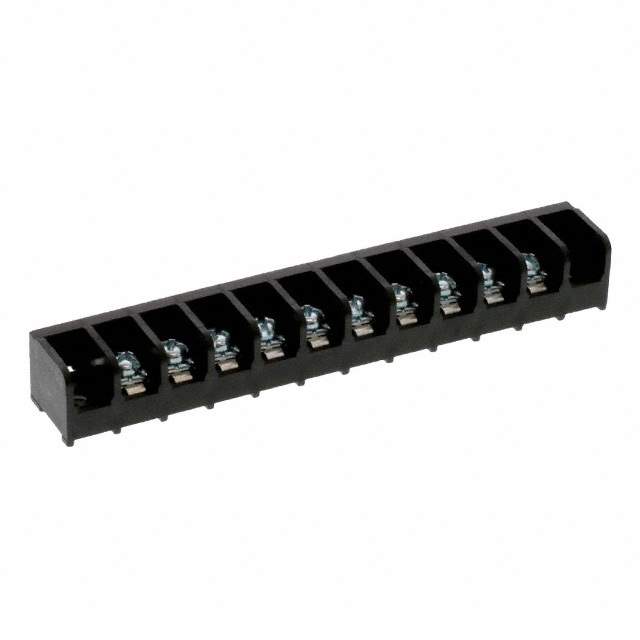

3-1546158-8 Real Image
Same model may have multiple batches, images only for reference.

3-1546158-8

Part No 3-1546158-8
Manufacturer TE Connectivity
Catalog Terminal Blocks
Description Series 140 Open Bottom Double Row Barrier Block 10 Position Screw Y Terminal #16 AWG Bulk
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Black
Contact Plating Tin
Current Rating 25 A
ELV Compliant
Flammability Rating UL94 V-0
Height 15.2 mm
Housing Color Black
Housing Material Plastic
Insulation Material Thermoplastic
Lead Free Yes
Length 115.849 mm
Max Current Rating 25 A
Mount Chassis, Panel, Through Hole
Number of Circuits 10
Number of Contacts 10
Number of Levels 1
Number of Positions 10
Number of Rows 1
Number of Wire Entries 10
Orientation Right Angle
Packaging Bulk
Pitch 9.525 mm
RoHS Compliant
Terminal Material Steel
Termination Solder
Voltage 300 V
Voltage Rating 300 V
Wire Gauge (Max) 22 AWG
Wire Gauge (Min) 12 AWG
Win Source Part Number 1087125-3-1546158-8
Categories Terminal Blocks
Manufacturer TE Connectivity
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 3-1546158-8 CAD Model

Description

TE Connectivity 10-position terminal block is a black-colored plastic housing with a right-angle orientation and a solder termination.

  • Voltage Rating: 300 V
  • Current Rating: 25 A
  • Contacts: 10
  • Circuits: 10
  • Mounting: Chassis, Panel, Through-Hole
  • Flammability Rating: UL94 V-0
  • RoHS Compliant: Yes
  • ELV Compliant: Yes
  • Insulation Material: Thermoplastic
  • Terminal Material: Steel
  • Height: 15.2 mm
  • Length: 115.849 mm
  • Maximum Wire Gauge: 22 AWG
  • Minimum Wire Gauge: 12 AWG
  • Housing Material: Plastic
  • Contact Plating: Tin
  • Popularity: Low
  • Supply and Demand: Shortage
  • Lead-Free: Yes
