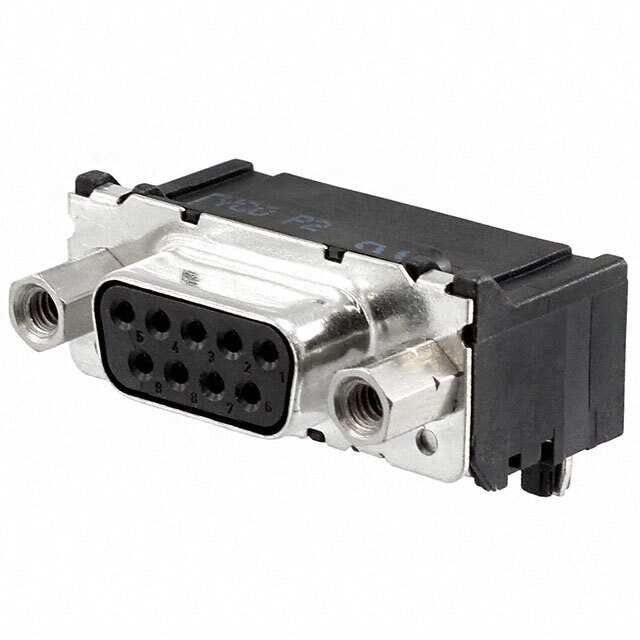

Same model may have multiple batches, images only for reference.
3-106507-2 TE Connectivity – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

3-106507-2

Part No 3-106507-2
Manufacturer TE Connectivity
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB RCPT 25POS R/A SOLDER
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 25
Number of Rows 2
Mounting Type Panel Mount, Through Hole, Right Angle
Shell Size, Connector Layout 3 (DB, B)
Contact Type Signal
Flange Feature Mating Side, Female Screwlock (4-40)
Termination Solder
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Material Flammability Rating UL94 V-0
Current Rating (Amps) 6A
Backset Spacing 0.406" (10.30mm)
Features Board Lock
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1623931-3-106507-2
Ultra Librarian 3D Model Ultra Librarian 3-106507-2 CAD Model
