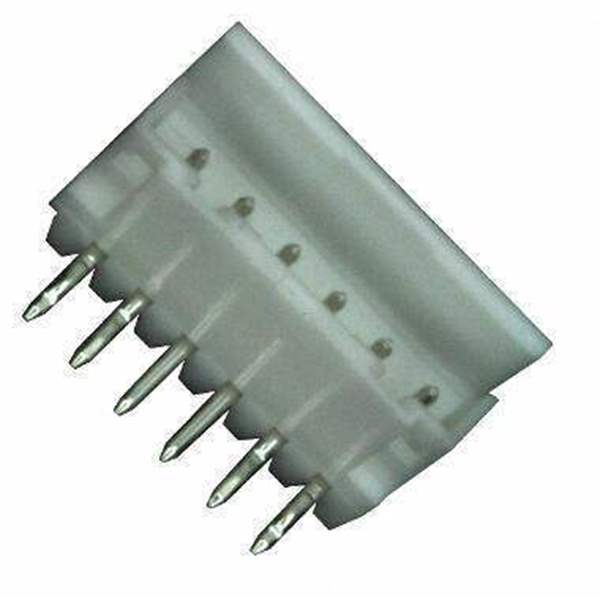

292250-6TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

292250-6

Part No 292250-6
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER R/A 6POS 2MM
Datasheet
292250-6 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Packaging  Bulk
Part Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Termination Kinked Pin, Solder
Fastening Type Detent Lock
Contact Length - Mating 0.165" (4.20mm)
Contact Length - Post 0.126" (3.20mm)
Insulation Height 0.228" (5.80mm)
Win Source Part Number WS1307820-292250-6
Ultra Librarian 3D Model Ultra Librarian 292250-6 CAD Model

Description

Connector Header Through Hole, Right Angle 6 position 0.079" (2.00mm)
