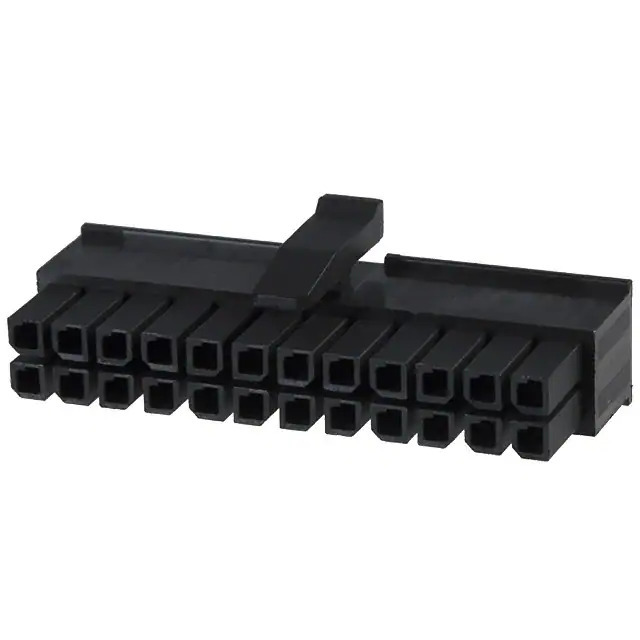

Same model may have multiple batches, images only for reference.

2-794617-4

Name: 2-794617-4
Brand: TE Connectivity
SKU: 1365894
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	2-794617-4
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN RCPT HSG 24POS 3.00MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr	TE Connectivity AMP Connectors
Series	Micro MATE-N-LOK
Package	Bulk
Product Status	Active
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	24
Pitch	0.118" (3.00mm)
Number of Rows	2
Row Spacing	0.118" (3.00mm)
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Fastening Type	Latch Lock
Color	Black
Features	-
Temperature Range - Operating	-40°C ~ 105°C
Note	Contacts Not Included
Base Product Number	794617
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8538.90.6000
Win Source Part Number	1365894-2-794617-4
Ultra Librarian 3D Model	Ultra Librarian 2-794617-4 CAD Model

Description

The TE Connectivity AMP Connectors 1365894-2-794617-4 is a rectangular connector housing from the Micro MATE-N-LOK series.

Series: Micro MATE-N-LOK
Connector Type: Receptacle
Positions: 24
Rows: 2
Pitch: 0.118" (3.00mm)
Mounting Type: Free Hanging (In-Line)
Temperature Range: -40°C to 105°C
Fastening Type: Latch Lock
Color: Black
