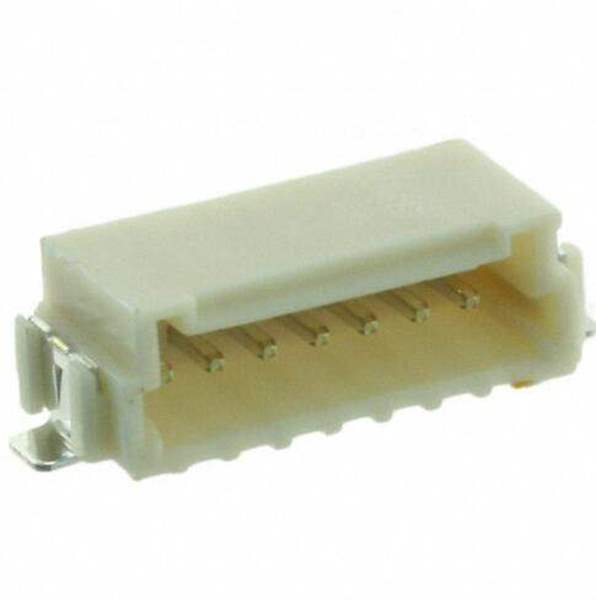

292228-7TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

292228-7

Part No 292228-7
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 7POS 1.5MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Product Status Active
Contact Type Male Pin
Connector Type Header
Pitch - Mating 0.059" (1.50mm)
Style Board to Cable/Wire
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.094" (2.40mm)
Win Source Part Number WS1207543-292228-7
Ultra Librarian 3D Model Ultra Librarian 292228-7 CAD Model

Description

Connector Header Surface Mount, Right Angle 7 position 0.059" (1.50mm)
