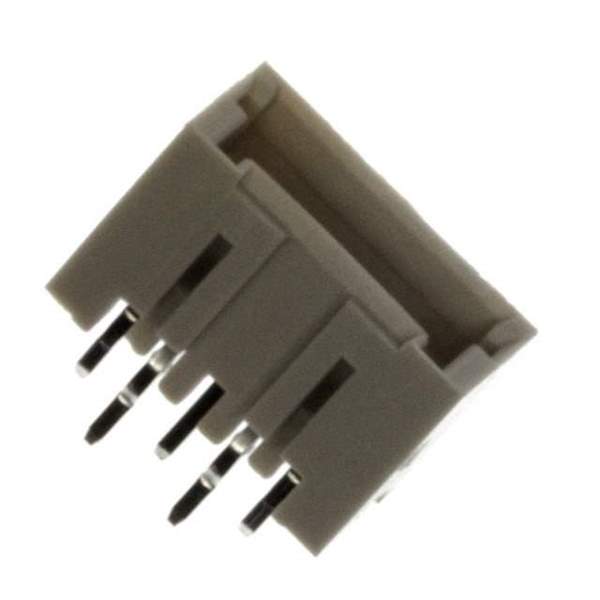

292207-5 Real Image
Same model may have multiple batches, images only for reference.

292207-5

Part No 292207-5
Manufacturer TE Connectivity
Catalog Rectangular Connectors

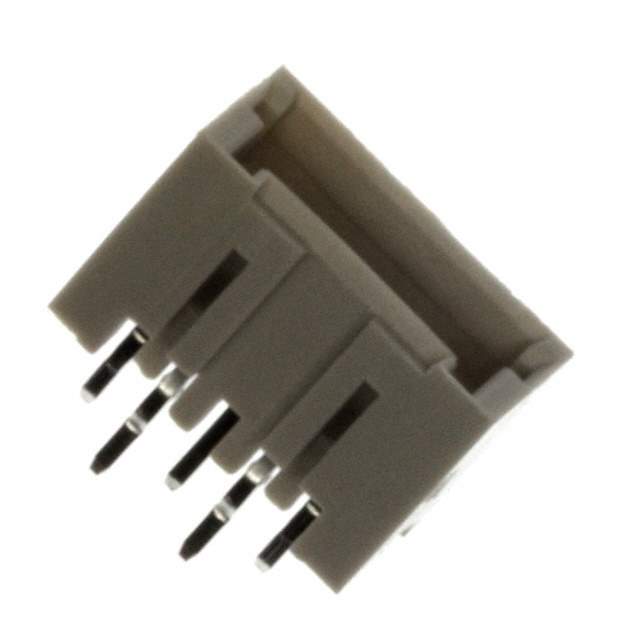

Description AMP MINI CT CONNECTOR 1.5MM PITCH SINGLE ROW POST HDR ASSY DIP STAGGERED TYPE WITH BOSS WITH KINK | CONN HEADER VERT 5POS 1.5MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.059" (1.50mm)
Number of Positions 5
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Style Through Hole
Termination Kinked Pin, Solder
Fastening Type Detent Lock
Contact Length - Mating 0.094" (2.40mm)
Contact Length - Post 0.118" (3.00mm)
Overall Contact Length 0.307" (7.80mm)
Insulation Height 0.272" (6.91mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 39.4μin (1.00μm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA), Nylon, Glass Filled
Features Board Guide
Temperature Range - Operating -30°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Gray
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 50VAC
Applications General Purpose
Manufacturer Pack Quantity 1,500
MSL Level 1 (Unlimited)
Win Source Part Number 1123503-292207-5
Manufacturer Homepage www.macom.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 292207-5 CAD Model

Description

This header connector is a 5-position male pin with a through-hole mounting style and board guide feature. It is designed for general purpose applications with a voltage rating of 50VAC.

  • Positions: 5
  • Gender: Male
  • Mounting Style: Through-Hole
  • Feature: Board Guide
  • Application: General Purpose
  • Voltage Rating: 50VAC
  • Connector Type: Shrouded with 4 Walls
  • Pitch Mating: 0.059" (1.50mm)
  • Packaging: Bulk
  • Manufacturer Pack Quantity: 1,500
  • Contact Material: Brass
  • Contact Finish: Tin
  • Insulation Material: Polyamide (PA), Nylon, Glass Filled
  • Flammability Rating: UL94 V-0
  • Temperature Range: -30°C to 105°C
  • Manufacturer: TE Connectivity AMP Connectors
