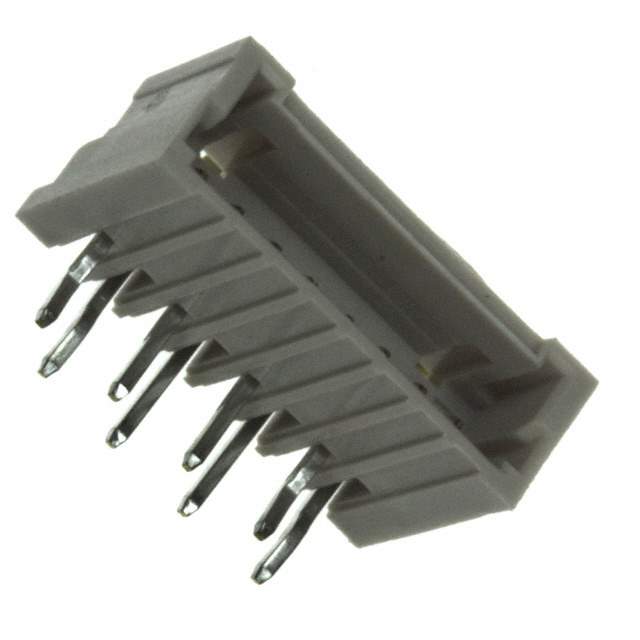

292206-8

Name: 292206-8
Brand: TE Connectivity
SKU: 417991
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	292206-8
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN HEADER 8POS R/A 1.5MM TIN
Datasheet	292206-8 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	TE Connectivity AMP Connectors
Packaging	Bulk
Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.059" (1.50mm)
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	1
Mounting	Through Hole, Right Angle
Termination	Kinked Pin, Solder
Fastening Type	Detent Lock
Contact Length - Mating	0.094" (2.40mm)
Contact Length - Post	0.118" (3.00mm)
Insulation Height	0.193" (4.90mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Insulation Material	Polyamide (PA), Nylon, Glass Filled
Temperature Range - Operating	-30°C to 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Gray
Current Rating	Varies by Wire Gauge
Voltage Rating	50VAC
Applications	General Purpose
Win Source Part Number	1003676-292206-8
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian 292206-8 CAD Model

Description

The TE Connectivity AMP Connectors 1003676-292206-8 is an 8-position male pin header connector with a pitch of 0.059" (1.50mm).

Number of Positions: 8
Gender: Male
Pitch: 0.059" (1.50mm)
Operating Temperature: -30°C to 105°C
Header Type: Shrouded 4 Wall
Packaging: Bulk
Popularity: Medium (70%)
Supply and Demand Status: Balanced
Category: Connectors and Interconnects
