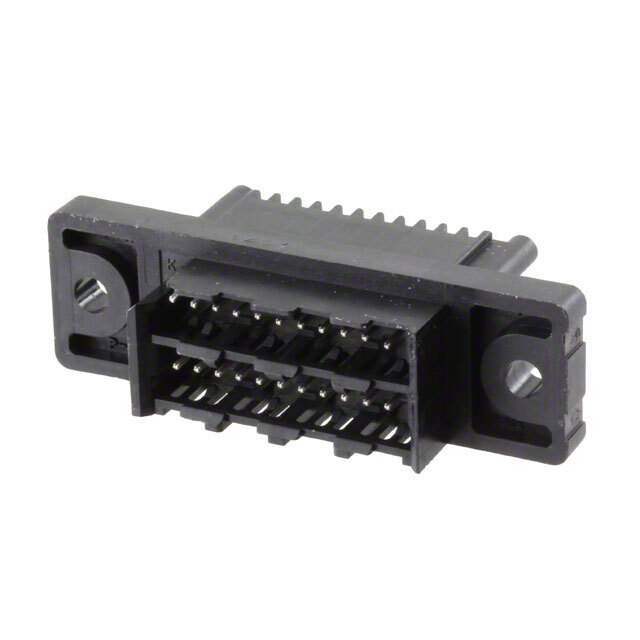

Part No 292178-1
Manufacturer TE Connectivity
Catalog Backplane Connectors
Description CONN BLNDMATE MIN-DRAWER 22P PNL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Type Blindmate, Fixed, Non-Gendered
Connector Style Mini-Drawer
Number of Positions 22
Number of Positions Loaded All
Pitch 0.079" (2.00mm)
Number of Rows 2
Mounting Style Panel Mount
Termination Solder
Features Board Guide
Contact Finish Gold
Color Black
Current Rating (Amps) 2A
Temperature Range - Operating -20°C ~ 105°C
Voltage Rating 125V
Manufacturer Pack Quantity 40
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 809618-292178-1
Ultra Librarian 3D Model Ultra Librarian 292178-1 CAD Model

Description

TE Connectivity AMP Connectors 809618-292178-1 is an electronic component used in various applications. The manufacturer is TE Connectivity AMP Connectors.

  • Positions: 22
  • Pitch: 0.079 inches
  • Mounting: Panel Mount
  • Color: Black
  • Connector Type: Blindmate, Fixed, Non-gendered
  • All Positions Loaded: Yes
  • Rows: 2
  • Termination: Solder
  • Contact Finish: Gold
  • Connector Style: Mini-Drawer
  • Voltage Rating: 125V
  • Current Rating: 2A
  • Supply and Demand Status: Limited
