Same model may have multiple batches, images only for reference.

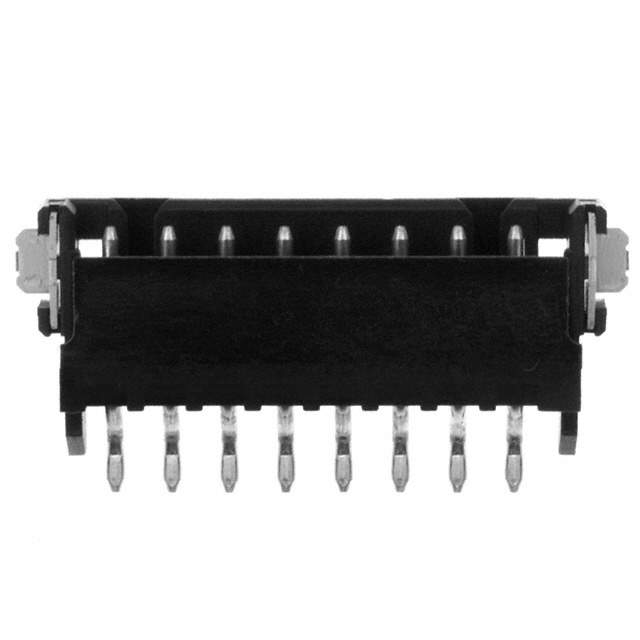

292173-8 Real Image
Same model may have multiple batches, images only for reference.

292173-8

Part No 292173-8
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 8POS 2MM / Connector Header Surface Mount, Right Angle 8 position 0.079" (2.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series CT
Package Tape & Reel
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 8
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount, Right Angle
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.165" (4.20mm)
Insulation Height 0.228" (5.80mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA6T), Nylon 6T, Glass Filled
Features Board Guide, Solder Retention
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 125VAC
Applications General Purpose
Base Product Number 292173
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names -292173-8-SI,Q4807619,2266-292173-8TR,A98630DKR,2921738,A98630CT,A98630TR
Standard Package 500
Win Source Part Number 1008373-292173-8
Ultra Librarian 3D Model Ultra Librarian 292173-8 CAD Model

Description

The TE Connectivity AMP Connectors 292173-8 is a rectangular connector that has a male pin contact type.

  • Contact Type: male pin
  • Voltage Rating: 125VAC
  • Shrouding: 4 wall
  • Mounting Type: surface mount and right angle
  • Pitch - Mating: 0.079" (2.00mm)
  • Contact Finish - Mating: Tin
  • Contact Finish - Post: Tin
  • Insulation Color: Black
  • Contact Length - Mating: 0.165" (4.20mm)
  • Temperature Range - Operating: not provided
  • ECCN: EAR99
