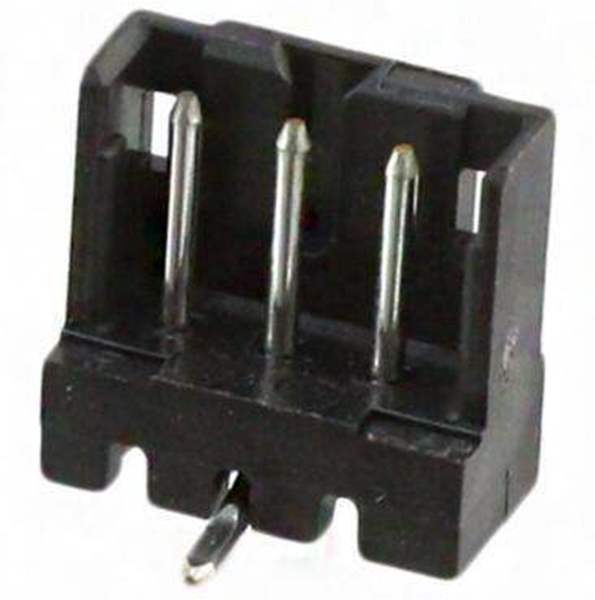

292172-3 TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

292172-3

Part No 292172-3
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER SMD 3POS 2MM
Datasheet
292172-3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Packaging  Tube
Part Status Active
Contact Type Male Pin
Number of Positions 3
Number of Rows 1
Mounting Type Surface Mount
Termination Solder
Contact Length - Mating 0.177" (4.50mm)
Insulation Height 0.307" (7.80mm)
Contact Shape Circular
Win Source Part Number WS1307807-292172-3
Ultra Librarian 3D Model Ultra Librarian 292172-3 CAD Model

Description

Connector Header Surface Mount 3 position 0.079" (2.00mm)
