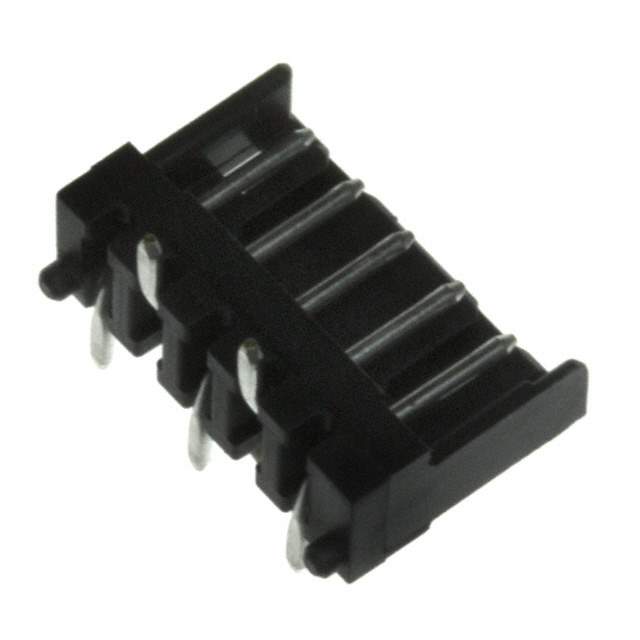

292171-5 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series CT
Package Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 5
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 3 Wall
Mounting SMD (SMT)
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.177" (4.50mm)
Insulation Height 0.307" (7.80mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA6T), Nylon 6T, Glass Filled
Features Board Guide
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 125VAC
Applications General Purpose
Base Product Number 292171
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names -292171-5-SI,A98794,2266-292171-5,-292171-5-LSI
Standard Package 40
Win Source Part Number 1005021-292171-5
Ultra Librarian 3D Model Ultra Librarian 292171-5 CAD Model

Description

TE Connectivity AMP Connectors' 292171 CT series Header Connector is a Male Pin Connector with 5 positions and is loaded with all positions. The connector has a pitch-mating of 0.079" (2.00mm) and a contact length-mating of 0.177" (4.50mm). The connector has a voltage rating of 125VAC and is suitable for use in various applications. The connector is part of the CT series and is categorized under Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins. The connector has an MSL Level of 1 (Unlimited) and an HTSUS of 8536.69.4040. Other part numbers for the connector include -292171-5-SI, A98794, 2266-292171-5, -292171-5-LSI.
