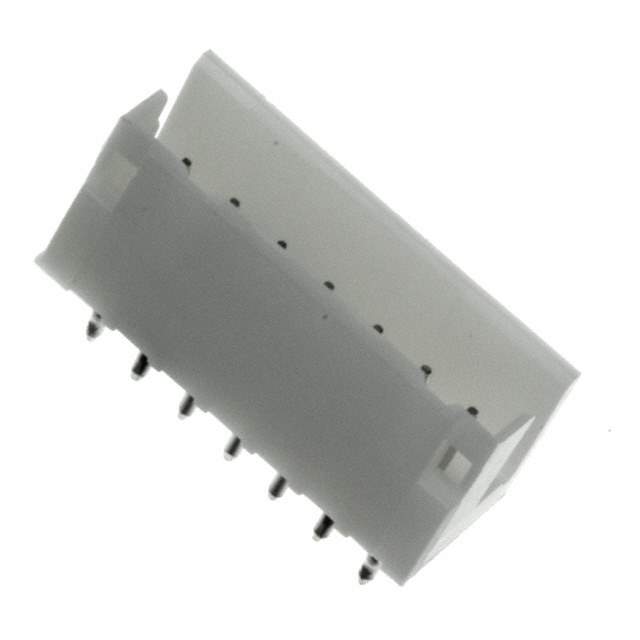

292132-7 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 7
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Through Hole
Termination Kinked Pin, Solder
Fastening Type Detent Lock
Contact Length - Mating 0.165" (4.20mm)
Contact Length - Post 0.126" (3.20mm)
Overall Contact Length 0.358" (9.09mm)
Insulation Height 0.268" (6.80mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 125VAC
Applications General Purpose
Base Product Number 292132
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 2921327,A98782,2266-292132-7,-292132-7-SI
Standard Package 500
Win Source Part Number 1334019-292132-7
Ultra Librarian 3D Model Ultra Librarian 292132-7 CAD Model

Description

The 1334019-292132-7 is a male pin header connector with 7 positions.

  • Positions: 7
  • Application: Rectangular Connector
  • Package Type: Bulk
  • Material: Brass
  • Finish: Tin
  • Connector Type: Header
  • Contact Type: Male Pin
  • Positions Loaded: All
  • Rows: 1
  • Pitch: 0.079" (2.00mm)
  • Shrouded: 4 Wall
  • Contact Length Mating: 0.165" (4.20mm)
  • Contact Length Post: 0.126" (3.20mm)
  • Overall Contact Length: 0.358" (9.09mm)
  • Insulation Height: 0.268" (6.80mm)
  • Insulation Material: Polyamide (PA66), Nylon 6/6
  • Insulation Color: Natural
  • Style: Board to Cable/Wire
  • Voltage Rating: 125VAC
  • Series: 292132
  • RoHS3 Compliant: Yes
