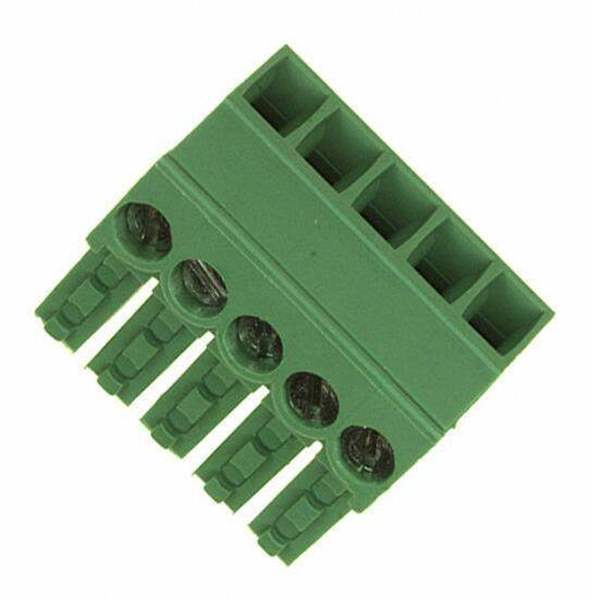

284506-5 TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

284506-5

Part No 284506-5
Manufacturer TE Connectivity
Catalog Headers, Plugs and Sockets
Description TERM BLOCK PLUG 5POS STR 3.5MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Product Status Active
Type Plug, Female Sockets
Pitch 0.138" (3.50mm)
Termination Style Screw - Rising Cage Clamp
Mounting Type Free Hanging (In-Line)
Operating Temperature -40°C ~ 110°C
Material Flammability Rating UL94 V-0
Win Source Part Number WS1207434-284506-5
Ultra Librarian 3D Model Ultra Librarian 284506-5 CAD Model

Description

5 Position Terminal Block Plug, Female Sockets 0.138" (3.50mm) 180° Free Hanging (In-Line)
