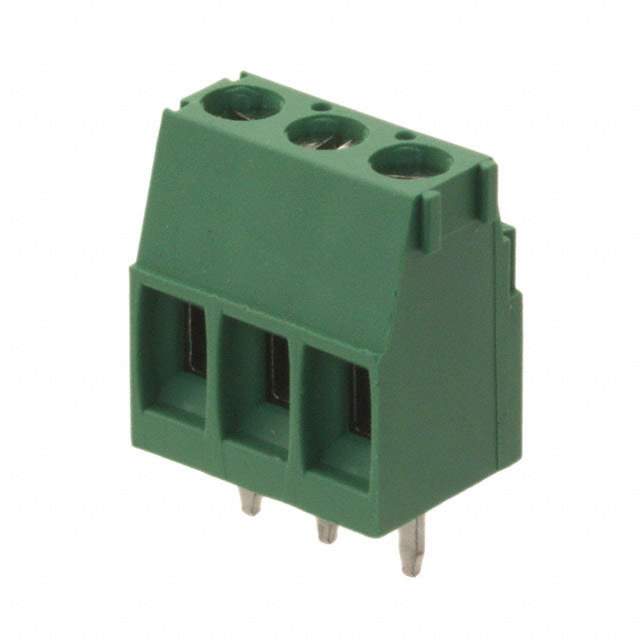

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 29 Weeks
Features 3 Position Wire to Board Terminal Block Horizontal with Board 0.150" (3.81mm) Through Hole
Manufacturer TE Connectivity
Series Buchanan
Package Tray
Mounting Through Hole
Family Name 284392
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 2266-284392-3, A98167, -284392-3-SI, 2843923
Quantity per package 200
Popularity High
Supply and Demand Status Balance
Win Source Part Number 906156-284392-3
Ultra Librarian 3D Model Ultra Librarian 284392-3 CAD Model

Description

The TE Connectivity 906156-284392-3 is a 3 position wire to board terminal block from TE Connectivity.

  • Mounting: Horizontal with Board 0.150" (3.81mm) Through Hole
  • Series: Buchanan
  • Family Name: 284392
  • Mounting: Through Hole
  • RoHS: Compliant
  • Category: Connectors
  • ECCN: EAR99
  • Package: Tray
  • Quantity per Package: 200
  • Production Lead Time: 29 weeks
