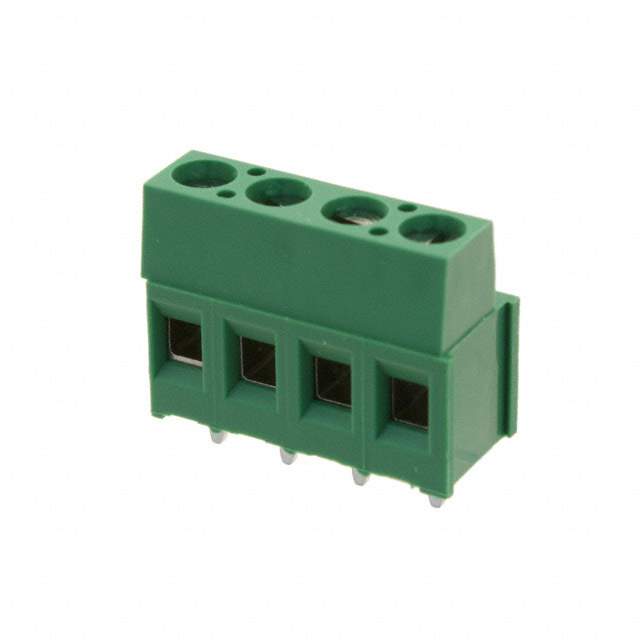

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks>Wire to Board
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Number of Levels 1
Positions Per Level 4
Pitch 0.200" (5.08mm)
Mating Orientation Horizontal with Board
Current 17.5 A
Voltage 300 V
Wire Gauge 12-30 AWG
Mounting Through Hole
Wire Termination Screw - Rising Cage Clamp
Features Interlocking (Side)
Color Green
Housing Material Polyamide (PA66), Nylon 6/6
Contact Material - Plating Brass - Tin Plated
Clamp Material - Plating Brass - Nickel Plated
Screw Material - Plating Brass - Nickel Plated
Torque - Screw 0.79 Nm (7.0 Lb-In)
Screw Thread M3
Base Product Number 282841
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number A98081,10520401100,2828414,-282841-4-LSI,-282841-4-SI
Standard Package 150
Win Source Part Number 1332202-282841-4
Ultra Librarian 3D Model Ultra Librarian 282841-4 CAD Model

Description

This TE Connectivity AMP Connectors terminal block is a high-quality connector designed for wire-to-board applications.

  • Wire Gauge: 12-30 AWG
  • Maximum Voltage: 300 V
  • Housing Material: Polyamide (PA66), Nylon 6/6
  • Color: Green
  • Interlocking: On the side
  • Wire Termination: Screw-rising cage clamp
  • Contact Material: Brass
  • Contact Plating: Tin plated
  • Clamp Material: Brass
  • Clamp Plating: Nickel plated
  • Screw Material: Brass
  • Screw Plating: Nickel plated
  • Screw Thread: M3
  • Torque: 0.79 Nm (7.0 Lb-In)
  • Mounting: Through a hole
  • Current Rating: 17.5 A
  • Sold In: Bulk
  • Standard Package: 150
