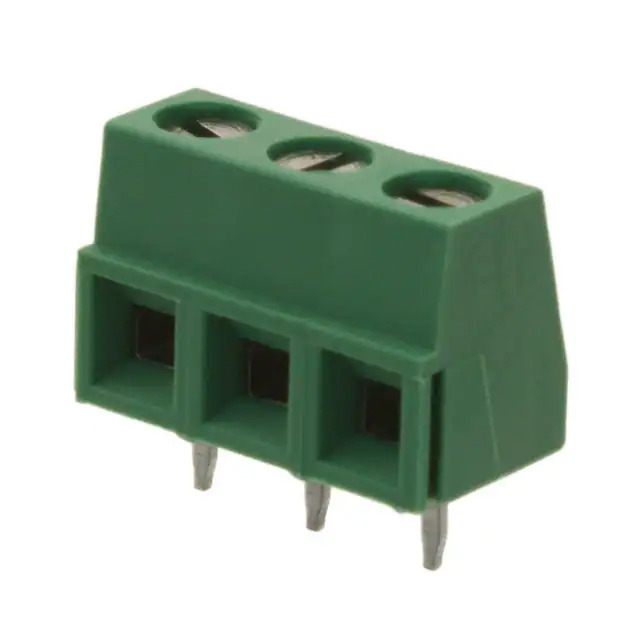

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminal Blocks - Wire to Board
Mfr TE Connectivity AMP Connectors
Series Buchanan
Package Bulk
Product Status Active
Number of Levels 1
Positions Per Level 3
Pitch 0.197" (5.00mm)
Mating Orientation Horizontal with Board
Current 13.5 A
Voltage 300 V
Wire Gauge 16-30 AWG
Mounting Type Through Hole
Wire Termination Screw - Rising Cage Clamp
Features Interlocking (Side)
Color Green
Housing Material Polyamide (PA66), Nylon 6/6
Contact Material - Plating Brass - Tin Plated
Clamp Material - Plating Brass - Nickel Plated
Screw Material - Plating Brass - Nickel Plated
Torque - Screw 0.68 Nm (6 Lb-In)
Screw Thread M3
Base Product Number 282836
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1366077-282836-3
Ultra Librarian 3D Model Ultra Librarian 282836-3 CAD Model

Description

The TE Connectivity AMP Connectors Buchanan series offers wire-to-board terminal blocks with a pitch of 0.197" (5.00mm).

  • Series: Buchanan
  • Pitch: 0.197" (5.00mm)
  • Mounting Type: Through Hole
  • Wire Gauge: 16-30 AWG
  • Housing Color: Green
  • Housing Material: Polyamide (PA66), Nylon 6/6
  • Positions per Level: 3
  • Number of Levels: 1
  • Torque Screw: 0.68 Nm (6 Lb-In)
  • Current Rating: 13.5A
  • Voltage Rating: 300V
  • Mating Orientation: Horizontal with Board
  • Wire Termination: Screw Rising Cage Clamp
  • Clamp Material: Brass, Nickel-Plated Finish
  • Screw Material: Brass, Nickel-Plated Finish
  • Product Status: Active
