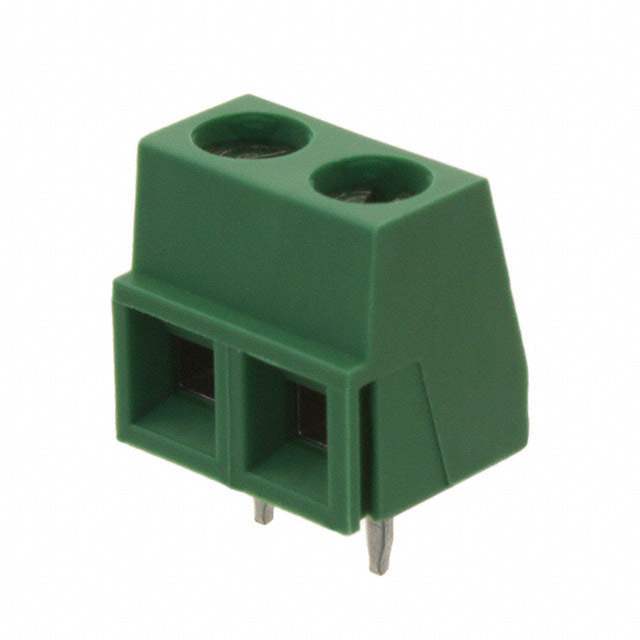

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number WS1201955-282836-2
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects- Terminal Blocks -Wire to Board
Series Buchanan
Package Bulk
Product Status Active
Number of Levels 1
Positions Per Level 2
Torque - Screw 0.68 Nm (6 Lb-In)
Color Green
Ultra Librarian 3D Model Ultra Librarian 282836-2 CAD Model

Description

The TE Connectivity AMP Connectors Buchanan series terminal blocks provide secure and reliable wire-to-board connections.

  • Positions per Level: 2
  • Number of Levels: 1
  • Color: Green
  • Package: Bulk
  • Screw Torque: 0.68 Nm (6 Lb-In)
  • Screw Thread: M3
  • Product Status: Active
