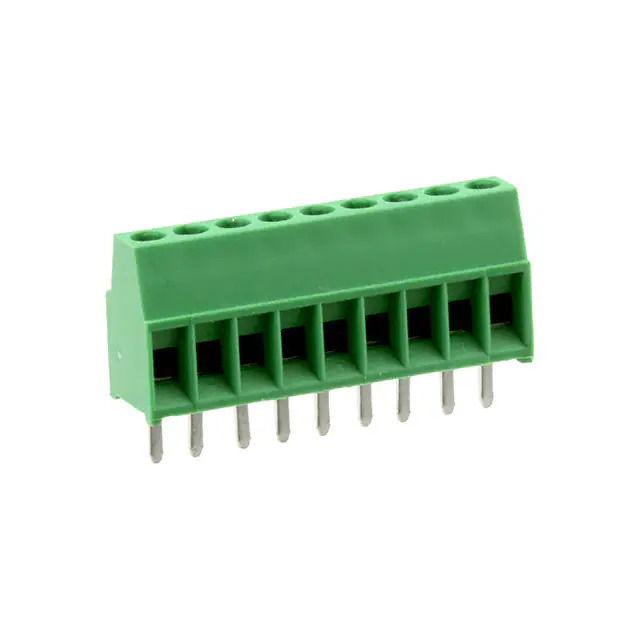

282834-9 TE Connectivity
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminal Blocks - Wire to Board
Mfr TE Connectivity AMP Connectors
Series Buchanan
Package Bulk
Product Status Active
Number of Levels 1
Positions Per Level 9
Pitch 0.100" (2.54mm)
Mating Orientation Horizontal with Board
Current 10 A
Voltage 150 V
Wire Gauge 16-30 AWG
Mounting Type Through Hole
Wire Termination Screw - Rising Cage Clamp
Features -
Color Green
Temperature Range - Operating -40°C ~ 105°C
Housing Material Polyamide (PA66), Nylon 6/6
Contact Material - Plating Brass - Tin Plated
Clamp Material - Plating Brass - Nickel Plated
Screw Material - Plating Steel, Stainless
Torque - Screw 0.2 Nm (1.7 Lb-In)
Screw Thread M1.6
Base Product Number 282834
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1366078-282834-9
Ultra Librarian 3D Model Ultra Librarian 282834-9 CAD Model

Description

The TE Connectivity AMP Connectors 1366078-282834-9 is a wire-to-board terminal block designed for use in terminal blocks - wire to board category.

  • Temperature Range: -40°C to 105°C
  • Pitch: 0.100" (2.54mm)
  • Wire Gauge: 16-30 AWG
  • Housing Color: Green
  • Housing Material: Polyamide (PA66), Nylon 6/6
  • Positions per Level: 9
  • Number of Levels: 1
  • Wire Termination: Screw Rising Cage Clamp
  • Contact Material: Brass
  • Contact Finish: Tin Plating
  • Current Rating: 10A
  • Voltage Rating: 150V
  • Mating Orientation: Horizontal with Board
  • Torque: 0.2 Nm (1.7 Lb-In)
  • Product Status: Active
