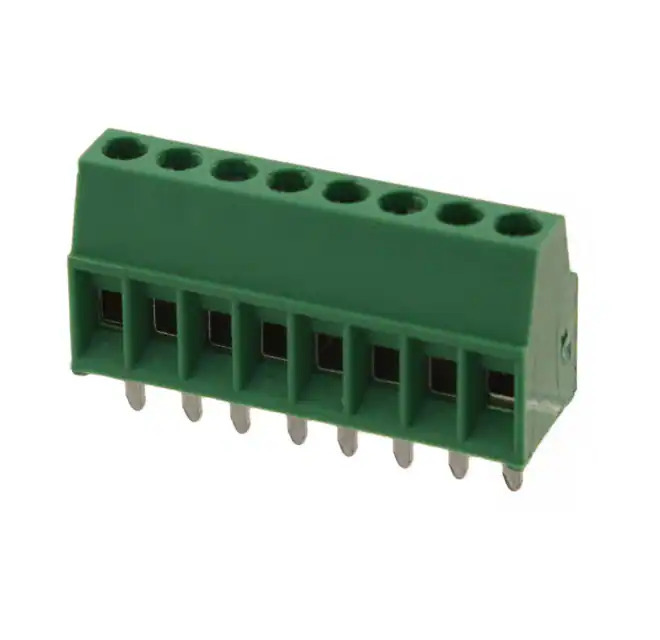

282834-8 TE Connectivity
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminal Blocks - Wire to Board
Mfr TE Connectivity AMP Connectors
Series Buchanan
Package Bulk
Product Status Active
Number of Levels 1
Positions Per Level 8
Pitch 0.100" (2.54mm)
Mating Orientation Horizontal with Board
Current 10 A
Voltage 150 V
Wire Gauge 16-30 AWG
Mounting Type Through Hole
Wire Termination Screw - Rising Cage Clamp
Features -
Color Green
Temperature Range - Operating -40°C ~ 105°C
Housing Material Polyamide (PA66), Nylon 6/6
Contact Material - Plating Brass - Tin Plated
Clamp Material - Plating Brass - Nickel Plated
Screw Material - Plating Steel, Stainless
Torque - Screw 0.2 Nm (1.7 Lb-In)
Screw Thread M1.6
Base Product Number 282834
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1366071-282834-8
Ultra Librarian 3D Model Ultra Librarian 282834-8 CAD Model

Description

The TE Connectivity AMP Connectors Buchanan series offers a reliable solution for wire-to-board connections.

  • Temperature Range: -40°C to 105°C
  • Housing Material: Polyamide (PA66) and Nylon 6/6
  • Housing Color: Green
  • Pitch: 0.100" (2.54mm)
  • Positions per Level: 8
  • Wire Termination: Screw rising cage clamp
  • Contact Material: Brass with tin plating
  • Current Rating: 10A
  • Voltage Rating: 150V
  • Mating Orientation: Horizontal with the board
  • Wire Gauge: 16 to 30 AWG
