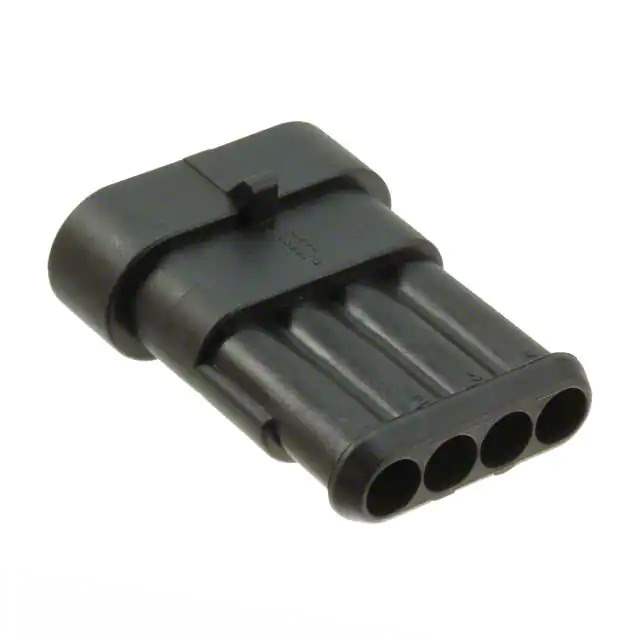

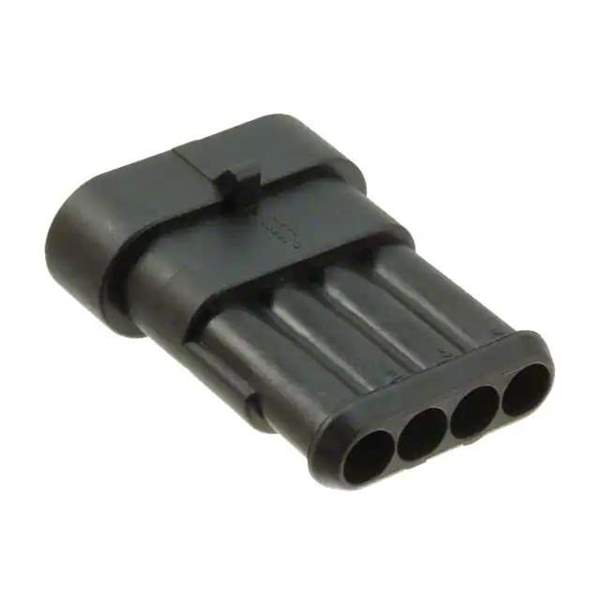

282106-1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr TE Connectivity
Series Superseal
Package Bulk
Product Status Active
Connector Type Receptacle
Contact Type Tab
Number of Positions 4
Pitch 0.236" (6.00mm)
Number of Rows 1
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Locking Ramp
Color Black
Temperature Range - Operating -40°C ~ 125°C
Note Contacts Not Included
Base Product Number 282106
Standard Package 900 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 849777-282106-1
Ultra Librarian 3D Model Ultra Librarian 282106-1 CAD Model

Description

The Superseal 4-position receptacle connector is a rectangular connector housing designed for reliable and secure connections.

  • Pitch: 0.236" (6.00mm)
  • Color: Black
  • Fastening Type: Locking Ramp
  • Termination: Crimp
  • Contact Type: Tab
  • Temperature Range: -40°C to 125°C
  • Series: Superseal
  • Standard Package: 900 pcs
  • Mounting: Free Hanging (In-Line)
  • Manufacturer: TE Connectivity
