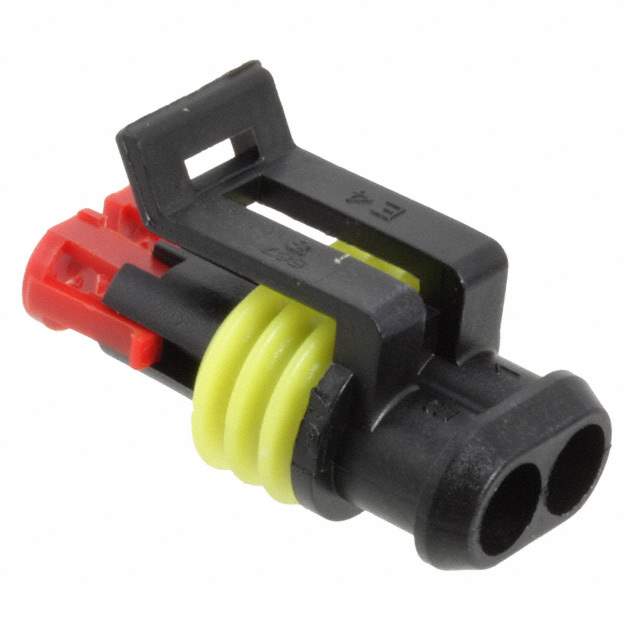

282080-1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Type Plug
Contact Type Female Socket
Number of Positions 2
Pitch 0.236" (6.00mm)
Number of Rows 1
Mounting Style Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Latch Lock
Color Black
Note Contacts Not Included
Manufacturer Pack Quantity 800
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 810216-282080-1
Ultra Librarian 3D Model Ultra Librarian 282080-1 CAD Model

Description

The TE Connectivity AMP Connectors 282080-1 is a 2-position plug connector that has a pitch of 0.236" (6.00mm).

  • Mounting Style: Free-hanging (in-line)
  • Fastening Type: Latch Lock
  • Contact Type: Female Socket
  • Temperature Range: -55°C to 125°C
