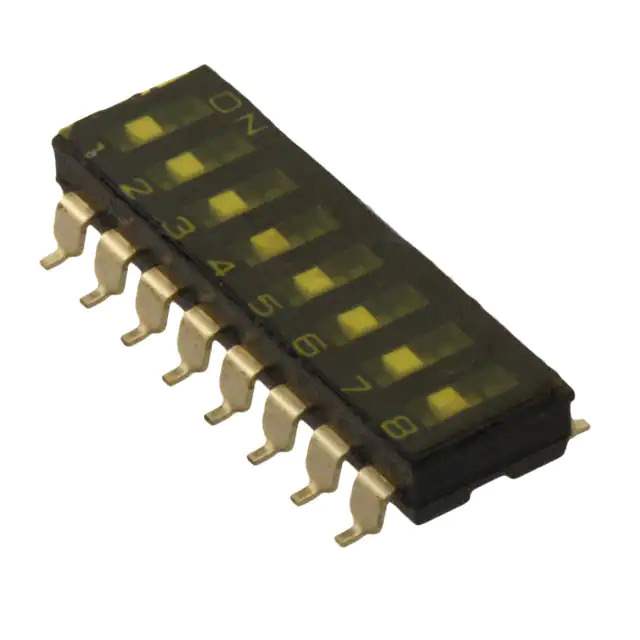

A6S-8102 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - DIP Switches
Mfr Omron
Series A6S
Package Tube
Product Status Obsolete
Circuit SPST
Number of Positions 8
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Height Above Board 0.146" (3.70mm)
Mounting Type Surface Mount
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Tape Seal
Temperature Range - Operating -20°C ~ 70°C
Length 0.837" (21.26mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Standard Package 22 pcs
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 859055-A6S-8102
Ultra Librarian 3D Model Ultra Librarian A6S-8102 CAD Model

Description

The A6S series DIP switch with 8 positions is a versatile electronic component designed for various applications from Omron.

  • Pitch: 0.100" (2.54mm)
  • Termination Style: Gull Wing
  • Actuator Type: Slide
  • Voltage Rating: 24VDC
  • Height Above the Board: 0.146" (3.70mm)
  • Length: 0.837" (21.26mm)
  • Temperature Range: -20°C to 70°C
  • Product Status: Obsolete
