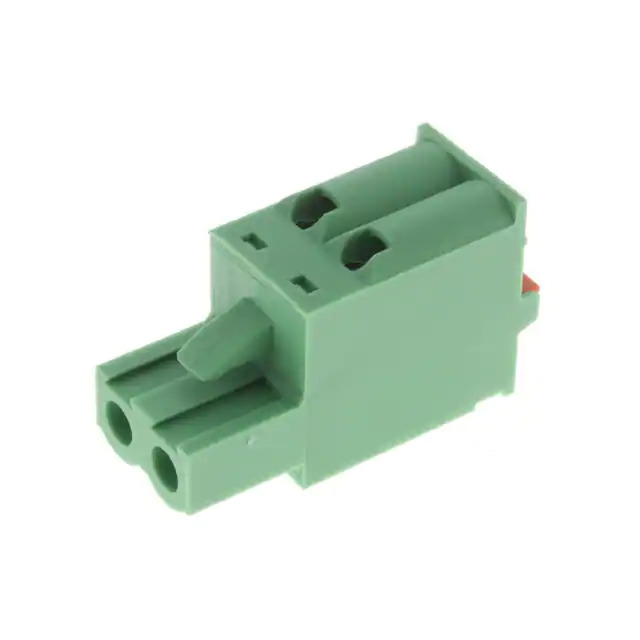

Same model may have multiple batches, images only for reference.

2350397-2

Name: 2350397-2
Brand: TE Connectivity
SKU: 1364673
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	2350397-2
Manufacturer	TE Connectivity
Catalog	Headers, Plugs and Sockets
Description	2 POS SPRING TB PLUG PITCH 5.00 / 2 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 180° Free Hanging (In-Line)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Terminal Blocks - Headers, Plugs and Sockets
Mfr	TE Connectivity AMP Connectors
Series	TB, Buchanan
Package	Bulk
Product Status	Active
Type	Plug, Female Sockets
Number of Positions	2
Positions Per Level	2
Number of Levels	1
Pitch	0.197" (5.00mm)
Header Orientation	-
Plug Wire Entry	180°
Termination Style	Screwless - Leg Spring, Push-In Spring
Mounting Type	Free Hanging (In-Line)
Current - IEC	-
Current - UL	16 A
Voltage - UL	300 V
Wire Gauge or Range - AWG	12-26 AWG
Wire Gauge or Range - mm²	0.13-3.31mm²
Color	Green
Temperature Range - Operating	-40°C ~ 105°C
Contact Mating Finish	Tin
Features	Push Button Actuated, Retention Latches (Non-Wire Side)
Material Flammability Rating	UL94 V-0
Ingress Protection	-
Screw Size	-
Torque - Screw	-
Wire Strip Length	12-13mm
Contact Material	Copper Alloy
Housing Material	Polyamide (PA66), Nylon 6/6
Contact Tail Length	-
Insulation Height	0.591" (15.00mm)
Base Product Number	2350397
MSL Level	Not Applicable
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8536.69.8000
Win Source Part Number	1364673-2350397-2
Ultra Librarian 3D Model	Ultra Librarian 2350397-2 CAD Model

Description

The TE Connectivity AMP Connectors TB, Buchanan series offers a range of terminal blocks, headers, plugs, and sockets, including this plug with female sockets. TE Connectivity AMP Connectors's TB, Buchanan series...

Features: Push Button Actuation, Retention Latches (Non-Wire Side)
Positions: 2
Termination Style: Screwless
Product Status: Active
