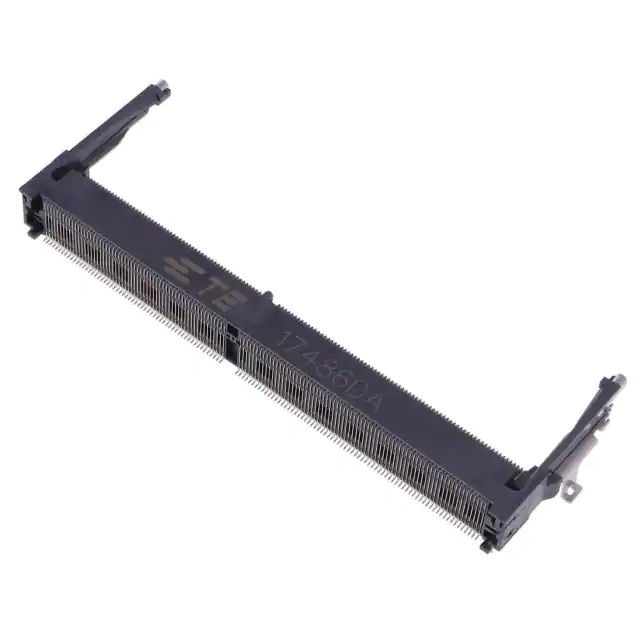

2309412-1 TE Connectivity
Same model may have multiple batches, images only for reference.

2309412-1

Part No 2309412-1
Manufacturer TE Connectivity
Catalog Memory Connectors - Inline Module Sockets
Description DDR4 SODIMM 260P 8.0H RVS / 260 Position SODIMM DDR4 SDRAM Socket Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Memory Connectors - Inline Module Sockets
Mfr TE Connectivity AMP Connectors
Series AdvancedMC
Package Tape & Reel (TR)
Product Status Active
Connector Style SODIMM
Number of Positions 260
Memory Type DDR4 SDRAM
Standards -
Mounting Type Surface Mount
Insertion Angle 25° Angle
Features Board Guide, Latches
Mounting Feature Reverse
Card Thickness 0.047" (1.20mm)
Height 0.315" (8.00mm)
Color Black
Contact Finish Gold
Contact Finish Thickness Flash
Base Product Number 2309412
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1364389-2309412-1
Ultra Librarian 3D Model Ultra Librarian 2309412-1 CAD Model

Description

The TE Connectivity AMP Connectors 1364389-2309412-1 is a memory connector from the AdvancedMC series.

  • Series: AdvancedMC
  • Mounting Type: Surface Mount
  • Packaging: Tape & Reel
  • Memory Type: DDR4 SDRAM
  • Color: Black
  • Features: Board Guide, Latches
  • Positions: 260
  • Mounting Feature: Reverse
  • Card Thickness: 0.047" (1.20mm)
  • Connector Style: SODIMM
  • Insertion Angle: 25°
  • Contact Finish: Gold
  • Finish Thickness: Flash
  • Product Status: Active
