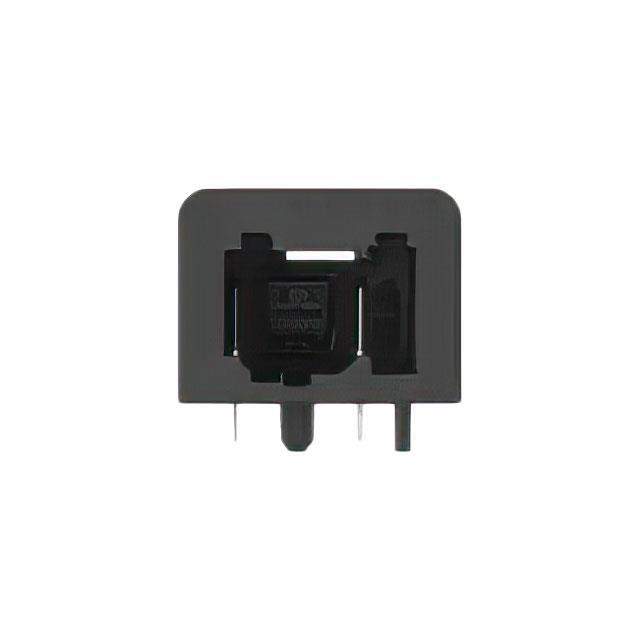

2304372-1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series MATEnet
Package Tape & Reel
Connector Type Header
Contact Type Tab
Pitch - Mating 0.071" (1.80mm)
Number of Positions 2
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Contact Length - Post 0.094" (2.40mm)
Insulation Height 0.531" (13.50mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA4T), Nylon 4T, Glass Filled
Features Board Guide
Temperature Range - Operating -40°C ~ 105°C
Insulation Color Black
Current Rating (Amps) 3A
Voltage Rating 60VAC/DC
Other Names 17-2304372-1TR,17-2304372-1DKR,17-2304372-1CT
Standard Package 170
MSL Level Not Applicable
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293108-2304372-1
Ultra Librarian 3D Model Ultra Librarian 2304372-1 CAD Model

Description

The MATEnet series header connector from TE Connectivity AMP Connectors is a male pin rectangular connector designed for use in board-to-cable/wire applications.

  • Positions: 2
  • Features: Board guides
  • Contact Material: Copper alloy
  • Voltage Rating: 60VAC/DC
  • Current Rating: 3A
  • Mounting Type: Through-hole, right-angle
  • Shrouded: 4 walls
  • Pitch: 0.071" (1.80mm)
  • Temperature Range: -40°C ~ 105°C
  • Insulation Material: Polyamide (PA4T), Nylon 4T, Glass Filled
  • Application: Wide range of applications
