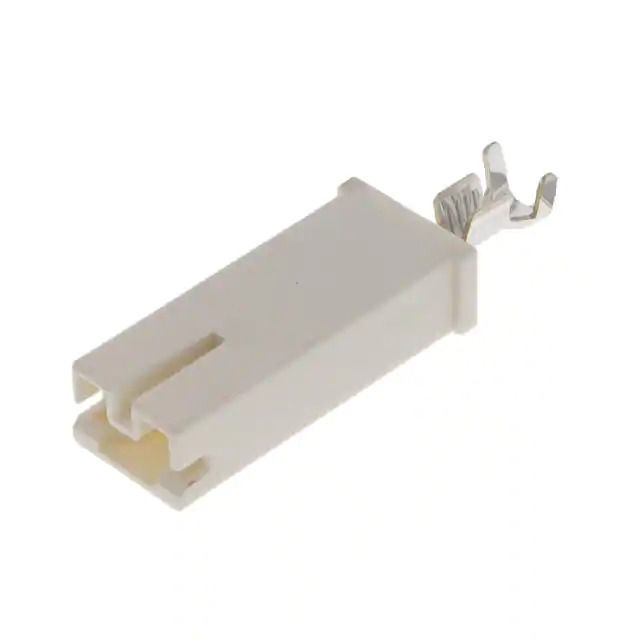

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Pod-Lok
Package Tape & Reel (TR)
Product Status Active
Terminal Type Standard
Gender Female
Tab Width 0.250" (6.35mm)
Tab Thickness 0.031" (0.79mm)
Tab Length -
Length - Overall 1.402" (35.60mm)
Termination Crimp
Wire Gauge 14-18 AWG
Insulation Mating End Insulated
Mounting Type Free Hanging (In-Line)
Features -
Color -
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.118" ~ 0.157" (3.00mm ~ 3.99mm)
Base Product Number 2299282
MSL Level Not Applicable
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1363265-2299282-2
Ultra Librarian 3D Model Ultra Librarian 2299282-2 CAD Model

Description

The TE Connectivity AMP Connectors Pod-Lok Quick Disconnect Connector is a terminal used for quick connects and disconnects in various electronic applications.

  • Wire Gauge: 14-18 AWG
  • Termination: Crimp
  • Terminal Type: Standard
  • Series: 2299282
  • Production Status: Active
  • Packaging: Tape and Reel
