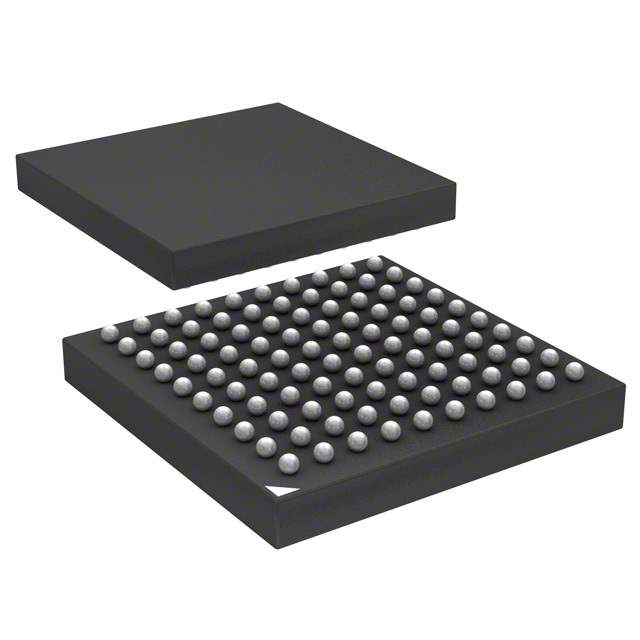

STM32F103VDH6 Microcontroller by STMicroelectronics
The STM32F103VDH6 is a high-performance microcontroller unit (MCU) from the renowned STM32F1 series by STMicroelectronics, designed to offer an optimal balance between performance, power consumption, and cost. It is built around the advanced ARM Cortex-M3 32-bit RISC core operating at a frequency of up to 72 MHz. This core features a high-speed embedded memory, extensive range of enhanced I/Os and peripherals, and an integrated analog-to-digital converter (ADC).
This MCU is tailored for a wide range of applications, such as industrial control, medical equipment, automotive systems, and consumer electronics. Its robust architecture, coupled with STMicroelectronics' state-of-the-art semiconductor technology, ensures reliable operation even in the most demanding conditions.
Key Features:
- Core: ARM Cortex-M3 32-bit RISC core operating at a maximum frequency of 72 MHz.
- Memory: Comes with a substantial amount of flash memory and SRAM, providing ample storage for complex applications.
- Connectivity: Features multiple communication interfaces including I2C, SPI, USART, and USB, enabling easy integration with other systems and peripherals.
- ADC: Integrated 12-bit analog-to-digital converters with multiple channels for accurate sensor readings and analog data processing.
- Timers: Advanced control timer, general-purpose timers, and basic timers to handle timing-related tasks efficiently.
- Debugging: Supports in-circuit debugging and programming for easy development and troubleshooting.
- Power Efficiency: Designed with power-saving modes like Sleep, Stop, and Standby to ensure energy-efficient operation.
The STM32F103VDH6 also stands out with its robust design, featuring an extensive set of supervisory features, such as the Watchdog timer and a range of software safety libraries, which help in achieving the desired safety integrity levels in critical systems. Its flexible static memory controller supports Compact Flash, SRAM, PSRAM, NOR, and NAND memories, which means that it can easily adapt to the memory requirements of different applications.
In summary, the STM32F103VDH6 microcontroller by STMicroelectronics is a versatile and powerful component that is ideally suited for a multitude of embedded applications requiring high performance, rich connectivity, and low power consumption.
