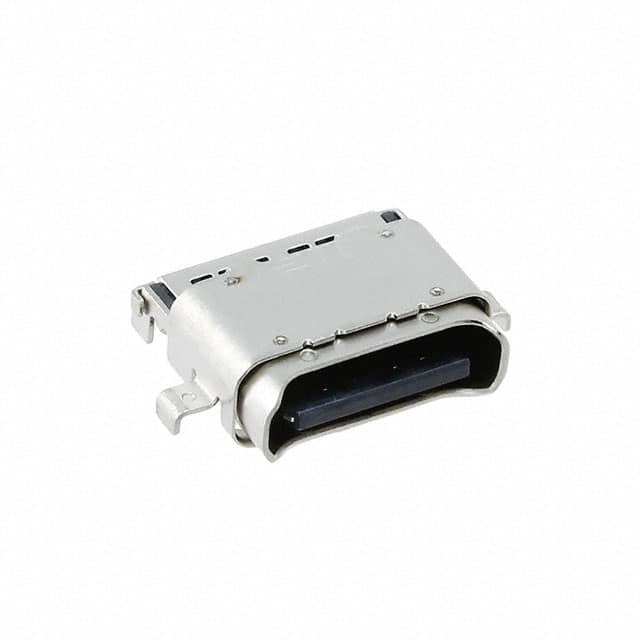

Part No 2295018-2
Manufacturer TE Connectivity
Catalog USB, DVI, HDMI Connectors
Description CONN RCPT USB3.1 TYPEC 24POS SMD / USB-C (USB TYPE-C) USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) Receptacle Connector 24 Position Board Cutout, Surface Mount, Right Angle; Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - USB, DVI, HDMI Connectors - USB, DVI, HDMI Connector Assemblies
Mfr TE Connectivity
Package Tape & Reel
Product Status Active
Connector Type USB-C (USB TYPE-C)
Number of Contacts 24
Gender Receptacle
Specifications USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))
Mounting Type Board Cutout, Surface Mount, Right Angle; Through Hole
Mounting Feature Horizontal, Mid Mount, Reverse
Termination Solder
Features Pick and Place
Ingress Protection Splash Proof
Temperature Range - Operating -30°C ~ 85°C
Number of Ports 1
Current Rating (Amps) 0.25A, 1.25A, 5A
Voltage - Rated 30V
Mating Cycles 10000
Contact Finish Gold
Shell/Shielding Material Steel, Stainless
Material Flammability Rating UL94 V-0
Insulation Color Black
Base Product Number 2295018
Standard Package 900 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 854636-2295018-2
Ultra Librarian 3D Model Ultra Librarian 2295018-2 CAD Model

Description

The 854636-2295018-2 is a USB-C connector assembly designed for use in electronic applications. It is part of the Connectors, Interconnects - USB, DVI, HDMI Connectors - USB, DVI, HDMI Connector Assemblies category.

  • Compatible With: USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed +) specifications
  • Connector Type: USB-C (USB TYPE-C)
  • Termination: Solder
  • Contact Finish: Gold
  • Contacts: 24
  • Voltage Rating: 30V
  • Features: Splash-proof
  • Package Quantity: 900 pieces
  • Mounting Configuration: Horizontal, mid mount, and reverse configurations
  • Product Status: Active
  • Manufacturer: TE Connectivity
