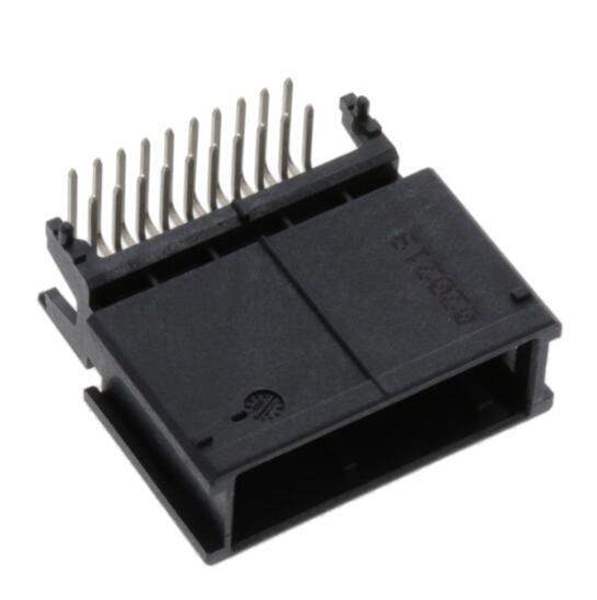

2208165-1TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

2208165-1

Part No 2208165-1
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER R/A 20POS 1.8MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Series Nano Micro Quadlok
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.071" (1.80mm)
Number of Positions 20
Row Spacing - Mating 0.059" (1.50mm)
Win Source Part Number WS1207004-2208165-1
Ultra Librarian 3D Model Ultra Librarian 2208165-1 CAD Model

Description

Connector Header Panel Mount, Through Hole, Right Angle 20 position 0.071" (1.80mm)
