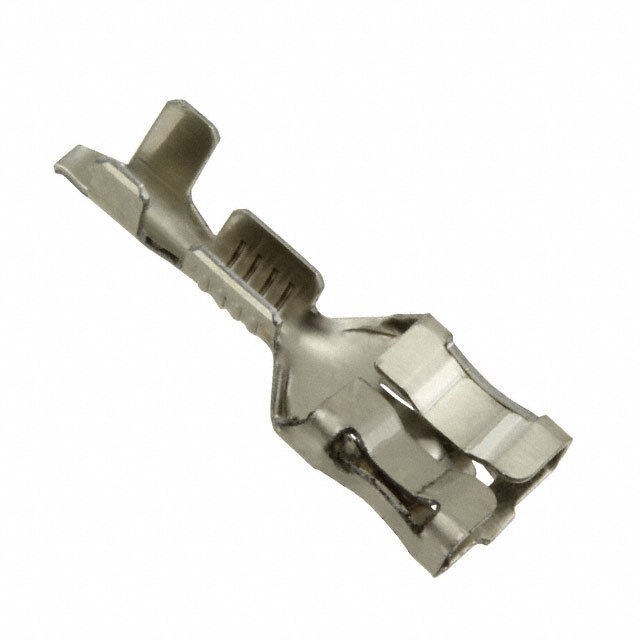

2178299-1 TE Connectivity – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

2178299-1

Part No 2178299-1
Manufacturer TE Connectivity
Catalog Terminals
Description 0.250" (6.35mm) Quick Connect Female 18-20 AWG Crimp Connector Non-Insulated
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TE Connectivity AMP Connectors
Series Faston
Packaging Tape & Reel (TR)Cut Tape (CT)
Terminal Type Standard
Gender Female
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Tab Length 0.276" (7.01mm)
Length - Overall 0.748" (19.00mm)
Termination Crimp
Wire Gauge 18-20 AWG
Insulation Non-Insulated
Mounting Type Free Hanging (In-Line)
Features Low Insertion Force (LIF)
Contact Material Steel
Contact Finish Nickel
Insulation Diameter 0.071" ~ 0.098" (1.80mm ~ 2.50mm)
Base Product Number 2178299
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1477450-2178299-1
Ultra Librarian 3D Model Ultra Librarian 2178299-1 CAD Model
