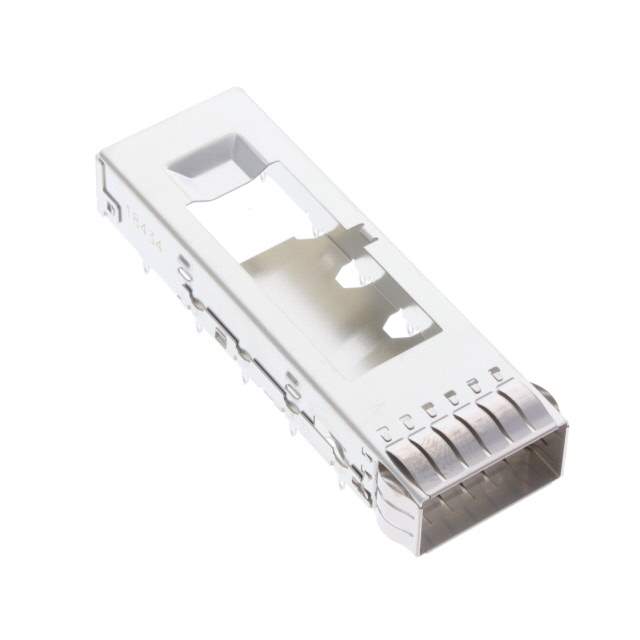

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Pluggable Connectors
Mfr TE Connectivity AMP Connectors
Package Tray
Connector Style Cage with Heat Sink
Connector Type QSFP28
Mounting Type Through Hole, Right Angle
Termination Press-Fit
Features EMI Shielded
Base Product Number 2170703
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.8180
Other Names A139176,-2170703-7-SI,2170703-7-ND
Standard Package 24
Win Source Part Number 1035750-2170703-7
Ultra Librarian 3D Model Ultra Librarian 2170703-7 CAD Model

Description

TE Connectivity AMP Connectors 1035750-2170703-7 is a QSFP28 connector with EMI shielding features.

  • Manufacturer: TE Connectivity AMP Connectors
  • Connector Type: QSFP28
  • Shielding: EMI Shielding
  • Termination: Press-Fit
  • Package: Tray
  • Connector Style: Cage with Heat Sink
  • Mounting: Through Hole and Right Angle
  • Contact Finish: None
  • Contact Finish Thickness: None
  • Standard Package: 24
  • ECCN: EAR99
  • HTSUS Code: 8538.90.8180
