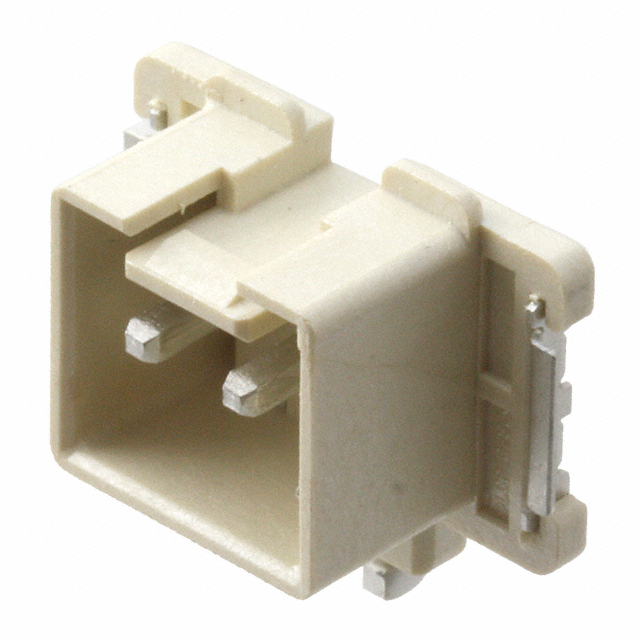

2154829-1 TE Connectivity – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

2154829-1

Part No 2154829-1
Manufacturer TE Connectivity
Catalog Solid State Lighting Connector - Assemblies
Description CONN SSL HDR 2POS 3.96MM SOLDER
Datasheet
2154829-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Package Tape & Reel (TR);Cut Tape (CT)
Product Status Active
Style Board to Cable/Wire
Connector Type Header, Male Pins
Number of Positions 2
Mounting Type Surface Mount, Bottom Entry, Through Board
Termination Solder
Pitch 0.156" (3.96mm)
Features Board Lock
Housing Color Natural
Contact Material Copper Alloy
Contact Finish Tin
Housing Material Liquid Crystal Polymer (LCP)
Operating Temperature -30°C ~ 105°C
Ultra Librarian 3D Model Ultra Librarian 2154829-1 CAD Model
