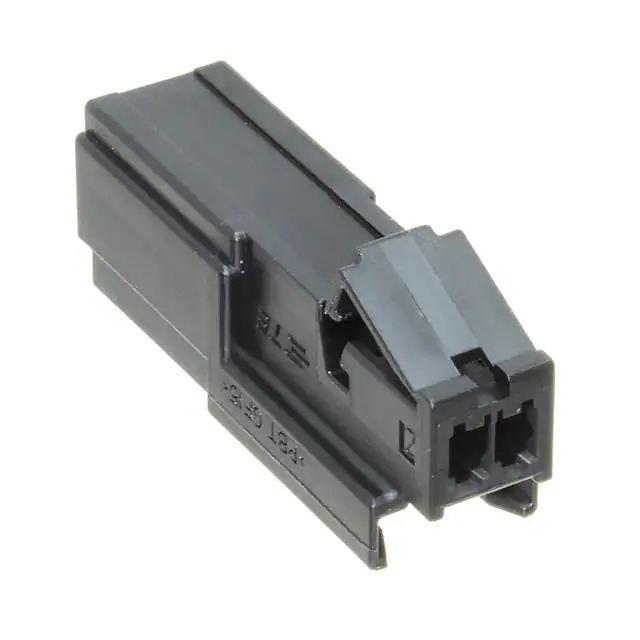

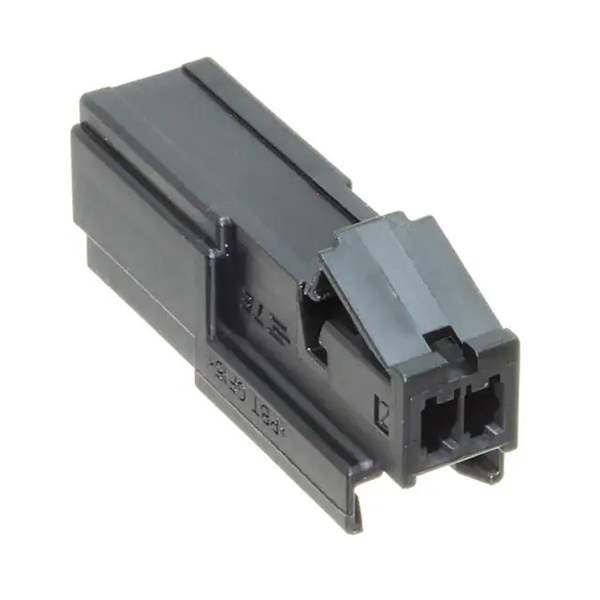

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr TE Connectivity AMP Connectors
Series Generation Y
Package Bag
Product Status Active
Connector Type Receptacle
Contact Type Male Pin
Number of Positions 2
Pitch 0.100" (2.54mm)
Number of Rows 1
Row Spacing -
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Latch Holder
Color Black
Features -
Temperature Range - Operating -40°C ~ 100°C
Note Contacts Not Included
Base Product Number 2138558
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.6000
Win Source Part Number 1364058-2138558-3
Ultra Librarian 3D Model Ultra Librarian 2138558-3 CAD Model

Description

The TE Connectivity AMP Connectors Generation Y Rectangular Connector Housing is a versatile component for various electronic applications. With a temperature range of -40°C to 100°C, this connector housing can withstand a wide range of operating conditions.

  • Temperature Range: -40°C ~ 100°C
  • Mounting Type: Free Hanging (In-Line)
  • Fastening Type: Latch Holder
  • Color: Black
  • Connector Type: Receptacle, Male Pin
  • Number of Positions: 2
  • Number of Rows: 1
  • Note: Contacts Not Included
  • Pitch: 0.100" (2.54mm)
