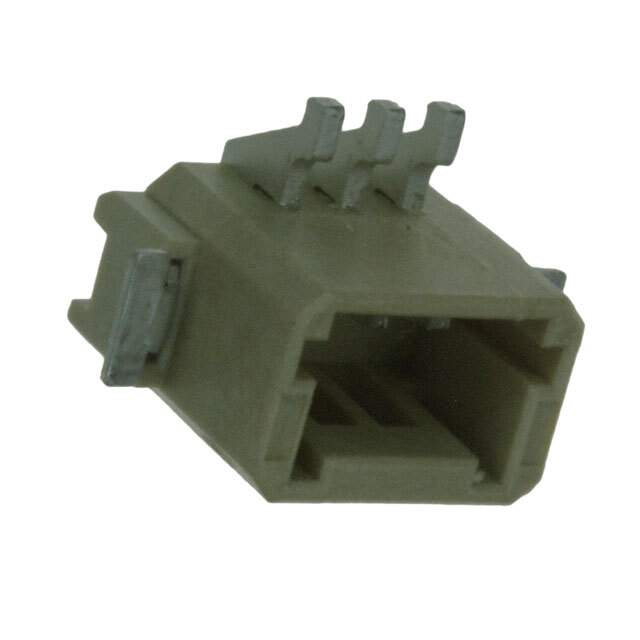

Same model may have multiple batches, images only for reference.

2106091-2

Name: 2106091-2
Brand: TE Connectivity
SKU: 1333483
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	2106091-2
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN HEADER SMD T/H 3POS 1.5MM / Connector Header Surface Mount, Through Board 3 position 0.059" (1.50mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	TE Connectivity AMP Connectors
Packaging	Reel - TR
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.059" (1.50mm)
Number of Positions	3
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting	Surface Mount, Through Board
Termination	Solder
Fastening Type	Detent Lock
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Solder Retention
Temperature Range - Operating	-30°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	Varies by Wire Gauge
Voltage Rating	50VAC
Applications	General Purpose
Base Product Number	2106091
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	A99871CT,-2106091-2-SI,21060912,A99871TR,A99871DKR
Standard Package	450
Win Source Part Number	1333483-2106091-2
Ultra Librarian 3D Model	Ultra Librarian 2106091-2 CAD Model

Description

The 1333483-2106091-2 is a header connector manufactured by TE Connectivity AMP Connectors.

Positions: 3
Pitch: 0.059" (1.50mm)
Mounting: surface mount device (SMD) or through-board
Fastening Type: detent lock
Connector Material: copper alloy
Voltage Rating: 50VAC
Application: general-purpose
