Same model may have multiple batches, images only for reference.

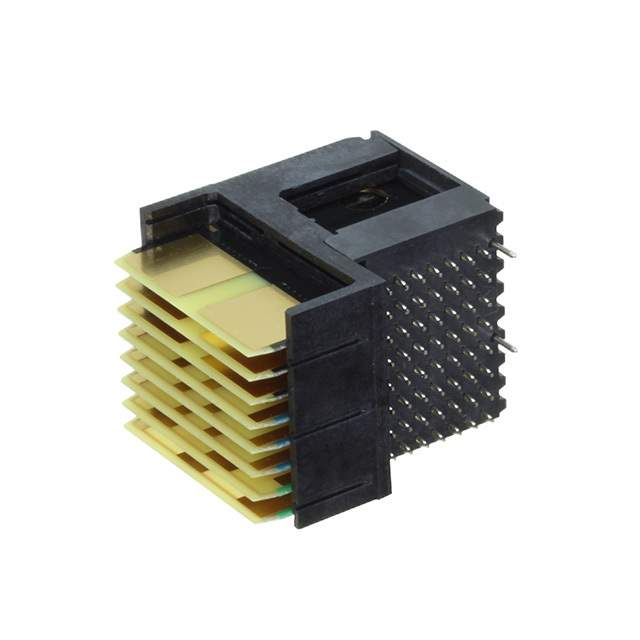

2102772-1 Real Image
Same model may have multiple batches, images only for reference.

2102772-1

Part No 2102772-1
Manufacturer TE Connectivity
Catalog Backplane Connectors
Description DC, 7ROW, HALF LEFT END, MULTIGI / 56 Connector Plug, Male Blades Board Edge, Through Hole, Right Angle Black VITA 46, Half, Left End
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Backplane Connectors - Specialized
Mfr TE Connectivity Aerospace, Defense and Marine
Series MULTIGIG RT2-R
Connector Usage Daughtercard
Connector Type Plug, Male Blades
Connector Style VITA 46, Half, Left End
Number of Positions 56
Number of Positions Loaded 53
Pitch 0.071" (1.80mm)
Number of Rows 7
Number of Columns 8
Mounting Type Board Edge, Through Hole, Right Angle
Termination Press-Fit
Contact Layout, Typical 4 Signal Pairs, 16 Single Signal, 6 Power Groups, 11 Ground, 3 Open
Features Board Guide
Contact Finish Gold
Contact Finish Thickness 50.0µin (1.27µm)
Color Black
Current Rating (Amps) 1A
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 2102772
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Names A132238,2266-2102772-1,-2102772-1-SI,2102772-1-ND
Standard Package 30
Win Source Part Number 1030917-2102772-1
Ultra Librarian 3D Model Ultra Librarian 2102772-1 CAD Model

Description

The 2102772-1 is a connector from TE Connectivity Aerospace, Defense and Marine designed for specialized backplane connector applications.

  • Positions: 56
  • Pitch: 0.071” (1.80mm)
  • Color: Black
  • Features: Board Guide
  • Connector Type: Plug
  • Contact Gender: Male Blades
  • Positions Loaded: 53
  • Rows: 7
  • Termination: Press-Fit
  • Contact Finish: Gold
  • Contact Finish Thickness: 50.0μin (1.27μm)
  • Connector Style: VITA 46, Half, Left End
  • Current Rating: 1A
  • Temperature Range: -55°C to 105°C
