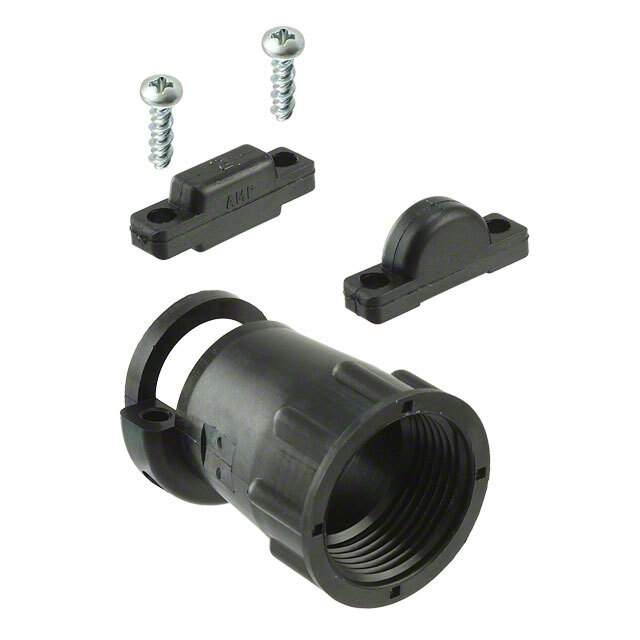

206966-7 Real Image
Same model may have multiple batches, images only for reference.

206966-7

Part No 206966-7
Manufacturer TE Connectivity
Catalog Circular Connectors
Description CONN BACKSHELL W/CLAMP SZ 13 BLK / Black Connector Backshell, Cable Clamp 3/4-20 UNEF 13
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors - Backshells and Cable Clamps
Mfr TE Connectivity AMP Connectors
Series CPC
Package Bag
Type Backshell, Cable Clamp
Cable Opening 0.453" (11.51mm)
Diameter - Outside 0.950" (24.13mm)
Shell Size - Insert 13
Thread Size 3/4-20 UNEF
Cable Exit 180°
Material Thermoplastic
Color Black
Features Clamp Screws
Includes 5 pcs - 3 pc Cable Clamp, 2 Screws
Material Flammability Rating UL94 V-0
For Use With/Related Products CPC Connectors
Base Product Number 206966
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.6000
Other Names 2069667,-206966-7-CSI,A32519,-1167-206966-7,-206966-7-SI
Standard Package 1
Win Source Part Number 1002582-206966-7
Ultra Librarian 3D Model Ultra Librarian 206966-7 CAD Model

Description

The CPC series from TE Connectivity AMP Connectors is a range of circular connectors that includes the 1002582-206966-7 backshell and cable clamp.

  • Color: black
  • Type: cable clamp with clamp screws
  • Suitable For: CPC connectors
  • Construction: thermoplastic
  • Flammability Rating: UL94 V-0
  • Pieces Included: 5 (3 cable clamps and 2 screws)
  • Cable Opening: 0.453 inches (11.51mm)
  • Diameter Outside: 0.950 inches (24.13mm)
  • Cable Exit: 180 degrees
  • Thread Size: 3/4-20 UNEF
