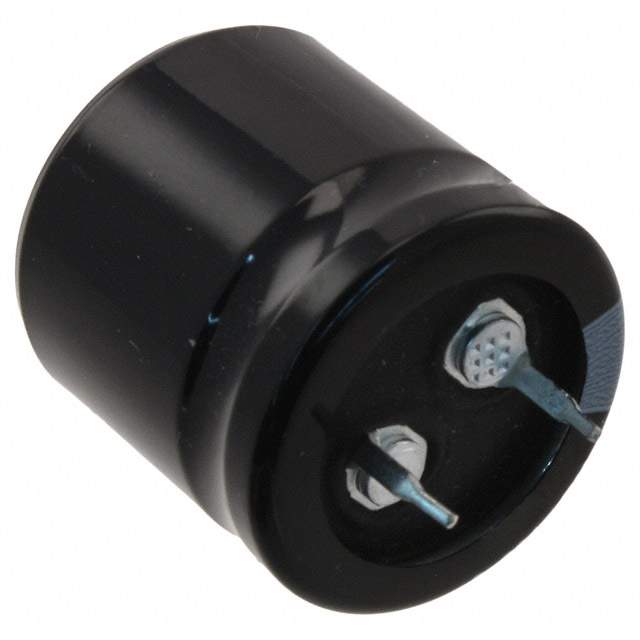

ECO-S2DB102CA Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Bulk
Status Obsolete(EOL)
Capacitance 1000μF
Tolerance ±20%
Voltage Rating 200V
ESR 216 mOhm @ 120Hz
Lifetime @ Temp. 3000 Hrs @ 105°C
Temperature Range - Operating -40°C to 105°C
Polarization Polar
Applications General Purpose
Ripple Current - Low Frequency 2.2A @ 120Hz
Ripple Current - High Frequency 2.508A @ 100kHz
Lead Spacing 0.394" (10.00mm)
Height - Seated (Max) 1.969" (50.00mm)
Mounting Through Hole
Dimension Radial, Can - Snap-In
Win Source Part Number 1032636-ECO-S2DB102CA
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ECO-S2DB102CA CAD Model

Description

The Panasonic Electronic Components ECO-S2DB102CA is a radial, can-snap-in capacitor with a capacitance of 1000μF and a voltage rating of 200V.

  • Capacitance: 1000μF
  • Voltage Rating: 200V
  • Tolerance: ±20%
  • Lead Spacing: 0.394" (10.00mm)
  • Polarization: Polarized
  • Surface Mount Land Size: -
  • ESR: 216 mOhm @ 120Hz
  • Lifetime @ Temp.: 3000 Hrs @ 105°C
  • Mounting Type: Through-Hole
  • Height-Seated (Max): 1.969" (50.00mm)
  • Category: Capacitors
  • Status: Obsolete (EOL)
  • Operating Temperature Range: -40°C to 105°C
  • Supply and Demand Status: Balanced
