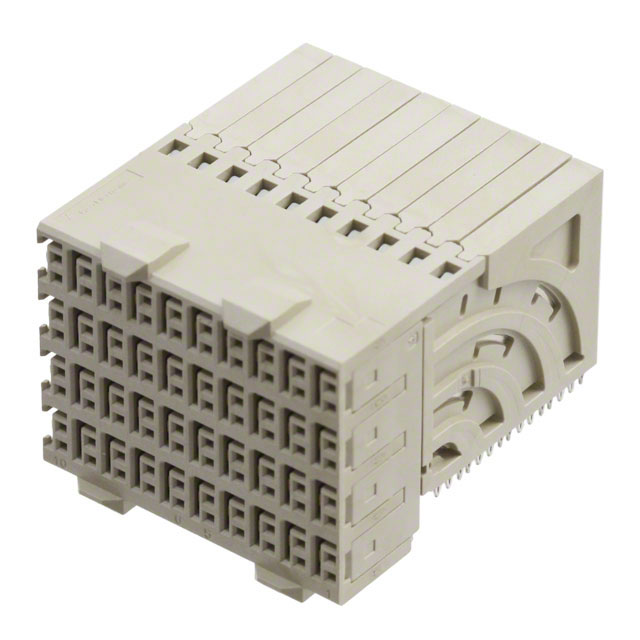

The TE Connectivity Aerospace, Defense and Marine Z-PACK HM-Zd series is a shielded receptacle female socket connector.

• Positions: 120
• Rows: 8
• Pitch: 0.098 inches (2.50mm)
• Operating Temperature: -65 to 105 degrees Celsius
• Termination: Press-fit
• Connector Style: High speed
• Voltage: 250V
• Current: 0.600A
• Flammability Rating: UL94 V-0
• Mounting: Board edge, through hole, right angle
• Connector Usage: Backplane
• Columns: 10
• Contact Layout: 80 single signals and 40 grounds
• Family: 2065657
• Introduction Date: February 14, 2012
• Estimated EOL date: 2027
• Halogen-Free: Compliant
• Popularity: Medium
