Same model may have multiple batches, images only for reference.

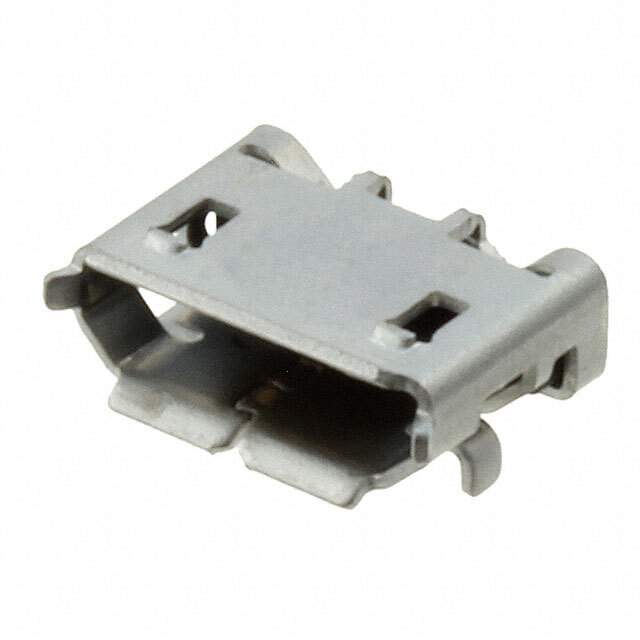

2013499-1 Real Image
Same model may have multiple batches, images only for reference.

2013499-1

Part No 2013499-1
Manufacturer TE Connectivity
Catalog USB, DVI, HDMI Connectors
Description CONN PCB USB 5POS
Datasheet
2013499-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Status Active
Connector Type USB - micro B
Number of Contacts 5
Gender Receptacle
Specifications USB 2.0
Mounting Surface Mount, Right Angle; Through Hole
Mounting Feature Horizontal
Termination Solder
Features Solder Retention
Temperature Range - Operating -30°C to 85°C
Number of Ports 1
Current Rating 0.5A, 1A, 1.8A
Voltage Rating 30V
Mating Cycles 10000
Contact Finish Gold
Shell/Shielding Material Steel, Stainless
Material Flammability Rating UL94 V-0
Win Source Part Number 1002948-2013499-1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 2013499-1 CAD Model

Description

The 1002948-2013499-1 is a USB micro B receptacle connector manufactured by TE Connectivity AMP Connectors with five contacts.

  • Voltage Rating: 30V
  • Current Rating: 0.5A, 1A, 1.8A
  • Package: Reel - TR
  • Material Flammability Rating: UL94 V-0
  • Mounting Type: Through Hole or Surface Mount
  • Mounting Feature: Right-Angle
