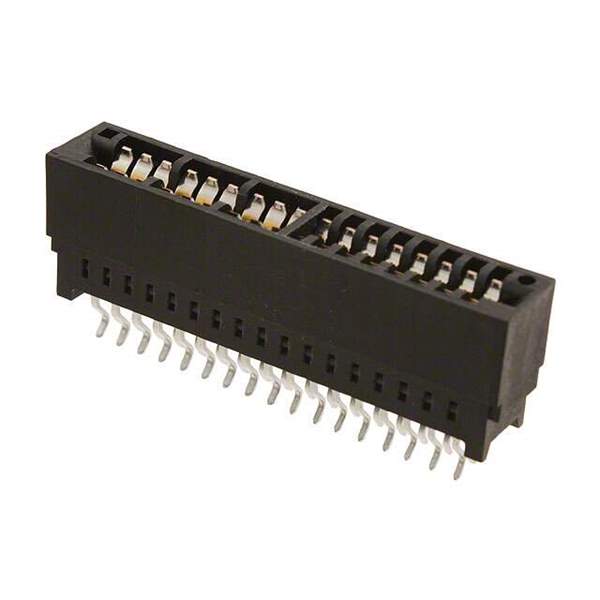

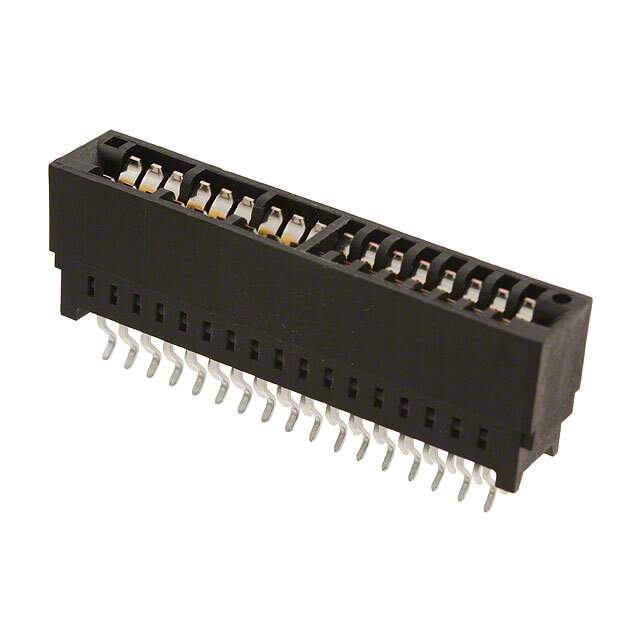

2007088-1 Real Image
Same model may have multiple batches, images only for reference.

2007088-1

Part No 2007088-1
Manufacturer TE Connectivity
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN EDGE DUAL FMALE 22POS 0.100 / 22 (16 + 6 Power) Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors - Edgeboard Connectors
Mfr TE Connectivity AMP Connectors
Series Standard Edge II
Package Bulk
Card Type Non Specified - Dual Edge
Gender Female
Number of Positions/Bay/Row 1; 1; 1; 8
Number of Positions 22 (16 + 6 Power)
Card Thickness 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows 2
Pitch 0.100" (2.54mm)
Read Out Dual
Mounting SMD (SMT)
Termination Solder
Contact Material Copper
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Color Black
Temperature Range - Operating -55°C ~ 85°C
Material - Insulation Polyester, Glass Filled
Base Product Number 2007088
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names 2007088-1-SI-ND,2007088-1-SI,20070881,-2007088-1-SI
Standard Package 42
Win Source Part Number 1035574-2007088-1
Ultra Librarian 3D Model Ultra Librarian 2007088-1 CAD Model

Description

TE Connectivity's 1035574-2007088-1 is a female card edge connector with 22 positions and a pitch of 0.100" (2.54mm).

  • Positions: 22
  • Pitch: 0.100" (2.54mm)
  • Color: Black
  • Rows: Two
  • Contacts: Gold Plated
  • Contact Thickness: 30.0µin (0.76µm)
  • Termination: Solder
  • Contact Material: Copper
  • Insulation Material: Polyester, Glass-Filled
  • RoHS: Compliant
  • Operating Temperature Range: -55°C ~ 85°C
  • Series: Standard Edge II
  • Popularity: Medium
  • Supply and Demand: Limited
