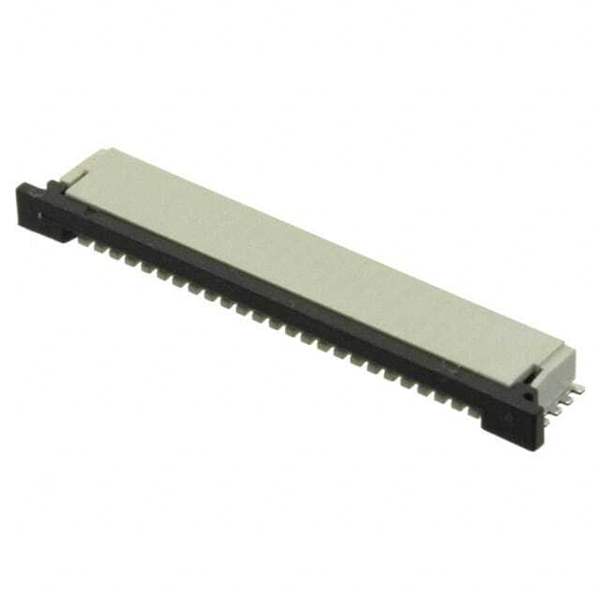

2-84952-4
Same model may have multiple batches, images only for reference.

2-84952-4

Part No 2-84952-4
Manufacturer TE Connectivity
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC BOTTOM 24POS 1MM R/A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - FFC, FPC (Flat Flexible) Connectors - FFC, FPC (Flat Flexible) Connector Assemblies
Mfr TE Connectivity
Package Tape & Reel
Product Status Active
Flat Flex Type FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 24
Pitch 0.039" (1.00mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.101" (2.56mm)
Locking Feature Slide Lock
Cable End Type Straight
Contact Material Phosphor Bronze
Contact Finish Tin
Housing Material Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material Polyamide (PA), Nylon, Glass Filled
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 200V
Temperature Range - Operating -40°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 1A
Contact Finish Thickness 78.7µin (2.00µm)
Housing Color Natural
Actuator Color Black
Base Product Number 84952
Standard Package 1,200 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 849308-2-84952-4
Ultra Librarian 3D Model Ultra Librarian 2-84952-4 CAD Model

Description

The 849308-2-84952-4 is a 24-position FFC/FPC connector assembly from TE Connectivity.

  • Pitch: 0.039 inches (1.00mm)
  • Termination: Solder
  • Contact Finish: Tin
  • Mounting: Surface Mount, Right-Angle
  • Voltage Rating: 200V
  • Height Above Board: 0.101 inches (2.56mm)
  • FFC/FCB Thickness: 0.30mm
  • Locking Feature: Slide Lock
  • Housing Material: Liquid Crystal Polymer (LCP) and Glass-Filled
  • Actuator Material: Polyamide and Nylon
  • MSL Level: 1
  • Current Rating: 1A
  • Base Product Number: 84952
  • Product Status: Active
