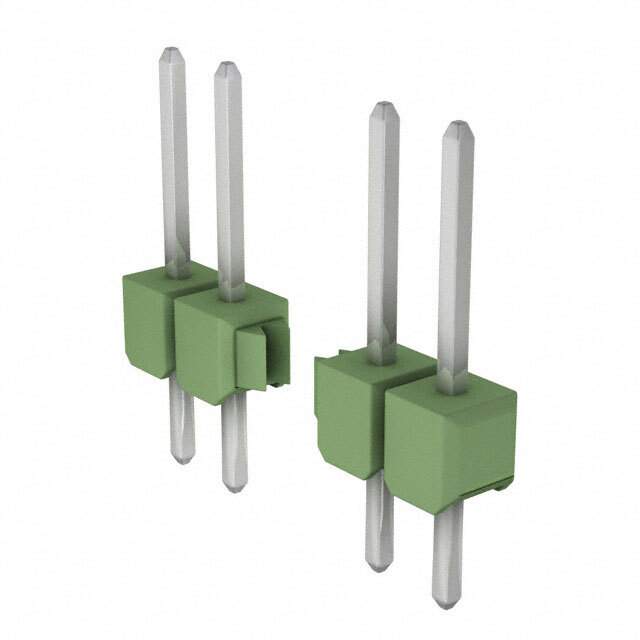

2-827064-0

Name: 2-827064-0
Brand: TE Connectivity
SKU: 1334514
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	2-827064-0
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 20POS 2.54MM / Connector Header Through Hole 20 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	TE Connectivity AMP Connectors
Packaging	Bulk
Connector Type	Header, Breakaway
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	20
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.512" (13.00mm)
Contact Length - Post	0.126" (3.20mm)
Overall Contact Length	0.748" (19.01mm)
Insulation Height	0.110" (2.79mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	98.4µin (2.50µm)
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Polybutylene Terephthalate (PBT)
Temperature Range - Operating	-65°C ~ 105°C
Insulation Color	Green
Contact Finish Thickness - Post	98.4µin (2.50µm)
Base Product Number	827064
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	2,400
Win Source Part Number	1334514-2-827064-0
Ultra Librarian 3D Model	Ultra Librarian 2-827064-0 CAD Model

Description

This connector is manufactured by TE Connectivity AMP Connectors and is a male pin header with 20 positions.

Positions: 20
Packaging: Bulk
Rows: 1
Termination: Through Hole
Fastening Type: Push-Pull
Contact Material: Copper Alloy
Contact Finish: Tin
Insulation Material: Polybutylene Terephthalate (PBT)
Insulation Color: Green
Contact Length - Mating: 0.512" (13.00mm)
Contact Length - Post: 0.126" (3.20mm)
Contact Length - Overall: 0.748" (19.01mm)
Insulation Height: 0.110" (2.79mm)
Operating Temperature: -65°C ~ 105°C
RoHS Compliant: Yes
MSL Level: 1 (Unlimited)
HTSUS: 8536.69.4040
