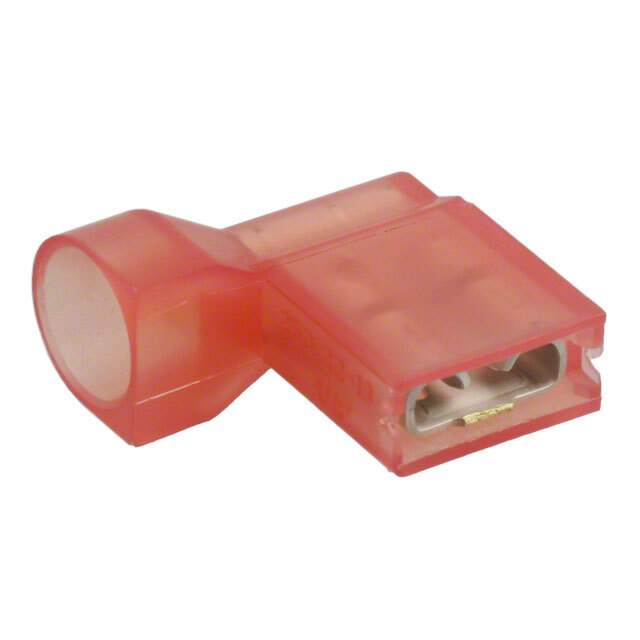

2-520856-2 Real Image
Same model may have multiple batches, images only for reference.

2-520856-2

Part No 2-520856-2
Manufacturer TE Connectivity
Catalog Terminals
Description CONN QC RCPT 18-22AWG 0.250 / 0.250" (6.35mm) Quick Connect Female 18-22 AWG Crimp Connector Fully Insulated
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Quick Connects, Quick Disconnect Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Terminal Type Angled - 90°, Flag
Gender Female
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Termination Crimp
Wire Gauge 18-22 AWG
Insulation Fully Insulated
Mounting Free Hanging (In-Line), Right Angle
Color Red
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.230" (5.84mm)
Base Product Number 520856
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number A27841-ND,A27841TR,-2-520856-2-CSI,2-520856-2-ND,-2-520856-2-SI,A27841,25208562,A27841CT
Standard Package 1,700
Win Source Part Number 1333835-2-520856-2
Ultra Librarian 3D Model Ultra Librarian 2-520856-2 CAD Model

Description

TE Connectivity AMP Connectors presents a fully insulated female quick disconnect connector with a crimp termination and brass contact material.

  • Color: Red
  • Contact Finish: Tin
  • Wire Gauge: 18-22 AWG
  • Contact Material: Brass
  • Terminal Type: Angled (90-degree flag)
  • Tab Width: 0.250 inches (6.35mm)
  • Tab Thickness: 0.032 inches (0.81mm)
  • Mounting: Free-hanging (in-line) or right-angle position
  • Insulation Diameter: 0.230 inches (5.84mm)
  • Insulation: Fully Insulated
  • Packaging: Reel
  • Standard Package: 1,700 units
  • Length Overall: -
