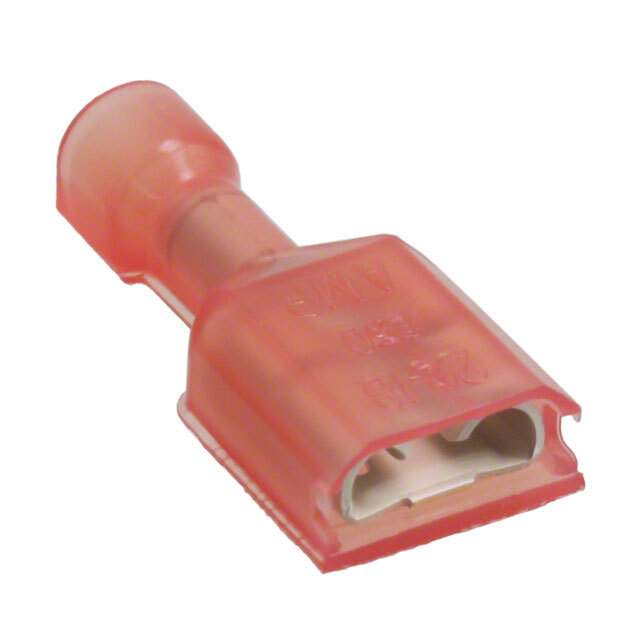

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Quick Connects, Quick Disconnect Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Terminal Type Standard
Gender Female
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Length - Overall 0.855" (21.72mm)
Termination Crimp
Wire Gauge 18-22 AWG
Insulation Fully Insulated
Mounting Free Hanging (In-Line)
Color Red
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.135" (3.43mm)
Base Product Number 520183
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number A27816-ND,A27816,A27817CT,25201832,-RAYVOSS-UFRCPT-22-18TPBR-CSI-ND,-2-520183-2-CSI,2-520183-2-ND,A27817TR,-RAYVOSS-UFRCPT-22-18TPBR-CSI,-2-520183-2-SI,-RAYVOSS-UFRCPT-22-18TPBR-SI,-RAYVOSS-UFRCPT-22-18TPBR-SI-ND
Standard Package 2,200
Win Source Part Number 1333744-2-520183-2
Ultra Librarian 3D Model Ultra Librarian 2-520183-2 CAD Model

Description

The TE Connectivity AMP Connectors 1333744-2-520183-2 is a female quick connect terminal that is designed for use in a variety of applications.

  • Wire Gauge: 18-22 AWG
  • Contact Finish: Tin
  • Insulation: Fully Insulated
  • Tab Width: 0.250" (6.35mm)
  • Tab Thickness: 0.032" (0.81mm)
  • Packaging: Reel
  • Standard Package: 2,200
  • Suitable for: Connectors, interconnects, and terminals
